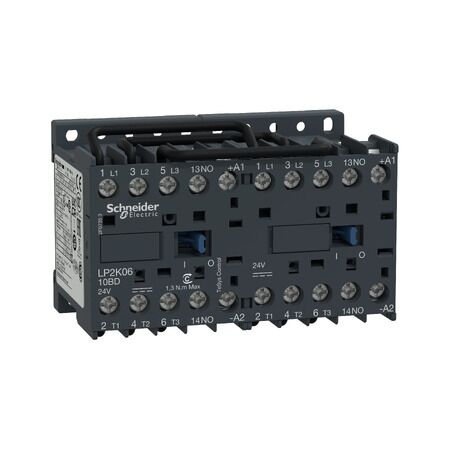

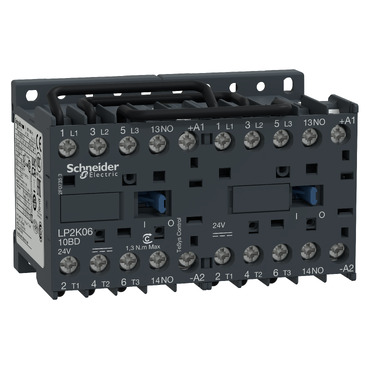

REVERS Contactor 6A AC3 2.2KW | 3-Pole Configuration | 24V DC Control | High Endurance | @Pack of 1 | by Clipsal
The REVERS Contactor 6A AC3 2.2KW is designed for reliable industrial motor control, featuring a 3-pole configuration and a 24V DC control coil. Ideal for reversing motor applications and automation panels, this contactor boasts high electrical and mechanical endurance, ensuring long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: REVERS Contactor 6A AC3 2.2KW | 3-Pole Configuration | 24V DC Control | High Endurance | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLP2K0610BD
Alternatively Known As: TeSys K Reversing Contactor, 6A Motor Contactor, 2.2kW AC3 Contactor, SCHLP2K0610BD, Clipsal Motor Starter
Technical Specifications
- Rated operational current: 6A (AC-3, 440V)
- Rated operational power: 2.2kW (400V, 3-phase)
- Control voltage: 24V DC
- Number of poles: 3P
- Auxiliary contacts: 1 NO
- Utilization category: AC-3
- Mechanical endurance: 10 million operations
- Electrical endurance: 1.2 million operations (AC-3)
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 58mm x 80mm x 45mm
- Weight: 0.25 kg
Key Features
- Reversing contactor for 3-phase motors
- Rated for AC-3 duty up to 6A (2.2kW at 400V)
- 3-pole configuration
- 1 normally open (NO) auxiliary contact
- 24V DC control coil
- Compact TeSys K series design
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Reversing motor applications
- Automation panels
- Conveyor systems
- Pumps and fans
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Energy-efficient operation reduces power losses in control circuits.
- Long mechanical life minimizes replacement waste.
- RoHS compliant materials reduce hazardous substances.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal REVERS Contactor 6A AC3 2.2KW (SCHLP2K0610BD) is available for immediate purchase. Ideal for industrial motor control and automation applications.
