Reverser 2 Pole Selector Switch | 20A | 400V AC | IP20 by Hager
Reverser 2 pole selector switch with 20A current and 400V AC rating—ideal for industrial control panels and commercial building management systems. Built for reliability, with IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

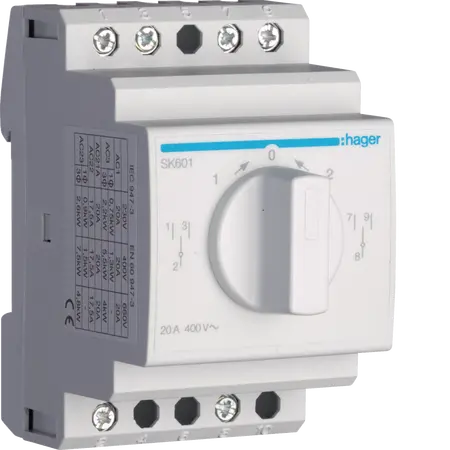

Product Name/Title: Reverser 2O 2F
Brand: Hager
SKU: SK601
Alternatively Known As: Hager Selector Switch, Reverser Switch, 2 Pole Selector Switch
Technical Specifications
- Number of poles: 2
- Rated operational voltage: 400 V AC
- Rated insulation voltage: 690 V
- Operating temperature: -10 to 40 °C
- Storage temperature: -40 to 80 °C
- Flexible conductor cross-section: 1.5 - 10 mm²
- Rigid conductor cross-section: 1 - 6 mm²
- Frequency: 50 Hz
- Dimensions (H x L x W): 85mm x 64mm x 53mm
- Weight: 0.5 kg
Key Features
- Rated current of 20 A with a short-circuit current rating of 8 kA.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels and machinery
- Commercial: Building management systems
- General: Any application requiring a reliable selector switch
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Reverser 2O 2F Selector Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control solutions.
