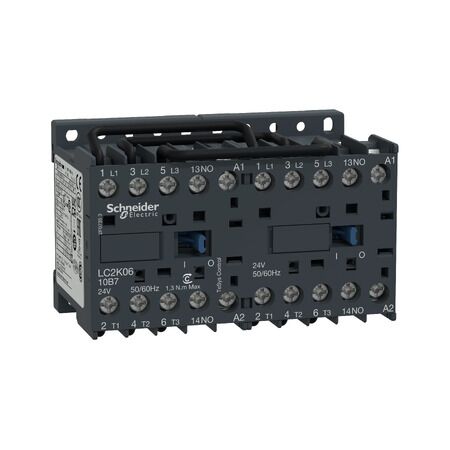

Reversing Contactor | 3-Pole Design | 16A AC-3 Rated | 24V AC Coil | @Pack of 1 | by Clipsal
The Reversing Contactor is a 3-pole device designed for reliable motor direction control, featuring a 16A AC-3 rated operational current and a 24V AC coil voltage for safe operation. Ideal for industrial motor control and automation applications, this durable contactor ensures efficient energy use and long operational life, making it perfect for conveyor systems, pumps, and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Contactor | 3-Pole Design | 16A AC-3 Rated | 24V AC Coil | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC2K1610B7
Alternatively Known As: motor reversing contactor, 3 pole contactor, Clipsal reversing contactor, SCHLC2K1610B7, motor direction contactor
Technical Specifications
- Type: Reversing Contactor
- Poles: 3
- Rated Operational Current (AC-3): 16A
- Coil Voltage: 24V AC
- Frequency: 50/60Hz
- Utilization Category: AC-3
- Conforms to IEC 60947-4-1
- Mechanical life: 10 million operations
- Electrical life: 1 million operations (AC-3)
- Dimensions (H x L x W): 80mm x 90mm x 45mm
- Weight: 0.45 kg
Key Features
- 3-pole reversing contactor for reliable motor direction control
- 16A AC-3 rated operational current
- 24V AC coil voltage for safe and efficient operation
- Compact design for easy panel integration
- Durable construction for industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial motor control
- Reversing the direction of three-phase motors
- Conveyor systems
- Pumps and hoists
- Machinery automation
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient motor control, reducing unnecessary energy consumption
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLC2K1610B7 Reversing Contactor is available for immediate purchase. Ideal for industrial motor control and automation applications.
