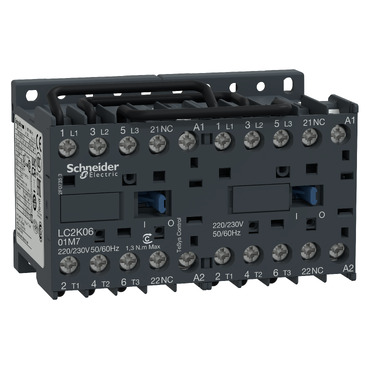

Reversing Contactor | 690V AC Rated Voltage | 12A Current | 3P+1NO Auxiliary | @1 | by Clipsal
Reversing Contactor designed for reliable industrial motor control, featuring a rated operational voltage of 690V AC and a 12A current capacity. Ideal for reversing the direction of three-phase motors, this compact contactor ensures efficient operation in automation panels and conveyor systems, making it perfect for licensed electricians and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Contactor | 690V AC Rated Voltage | 12A Current | 3P+1NO Auxiliary | @1 | by Clipsal
Brand: Clipsal
SKU: SCHLC2K1201M7
Alternatively Known As: motor reversing contactor, Clipsal contactor, LC2K1201M7, Schneider reversing contactor, three-phase contactor
Technical Specifications
- Rated operational voltage: 690V AC
- Control circuit voltage: 230V AC 50/60Hz
- Rated current: 12A (AC-3)
- Number of poles: 3P+1NO auxiliary
- Mechanical durability: 10 million operations
- Electrical durability: 1.2 million operations (AC-3)
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 90mm x 45mm
- Weight: 0.45 kg
Key Features
- Compact design for easy integration into control panels
- Reliable operation for frequent reversing cycles
- AC coil voltage for consistent performance
- Durable contacts for long service life
- Suitable for use with three-phase motors
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial motor control
- Reversing the direction of three-phase motors
- Automation panels
- Conveyor systems
- Pumps and hoists
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient motor control, reducing energy waste from incorrect motor operation.
- Long service life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLC2K1201M7 Reversing Contactor is available for immediate purchase. Ideal for industrial motor control and automation applications.
