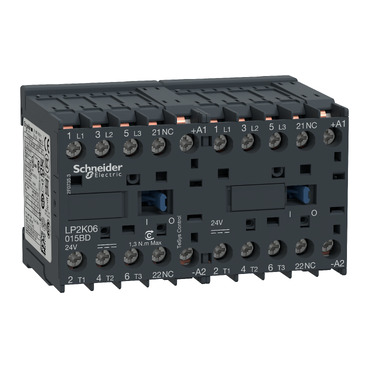

Reversing Contactor | 690V AC | 9A AC-3 | 3 Poles | by Clipsal
The Reversing Contactor is designed for efficient motor control, featuring a rated operational voltage of 690V AC and a current rating of 9A AC-3. Ideal for industrial automation systems and motor control centers, this robust contactor ensures reliable operation for frequent switching, making it perfect for reversing the direction of three-phase motors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Contactor | 690V AC | 9A AC-3 | 3 Poles | by Clipsal
Brand: Clipsal
SKU: SCHLP2K09015BD
Alternatively Known As: motor reversing contactor, three-phase reversing contactor, Clipsal motor contactor, SCHLP2K09015BD contactor
Technical Specifications
- Rated operational voltage: 690V AC
- Rated operational current: 9A AC-3
- Control voltage: 24V DC
- Number of poles: 3
- Auxiliary contacts: 1 NO + 1 NC
- Mechanical endurance: 10 million operations
- Electrical endurance: 1 million operations
- Mounting: DIN rail or screw mounting
- Conforms to IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 90mm x 45mm
- Weight: 0.5 kg
Key Features
- Compact design for easy panel integration
- Reliable and robust operation for frequent switching
- Suitable for reversing the direction of three-phase motors
- High electrical and mechanical endurance
- Easy installation and maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation systems
- Motor control centers
- Conveyor systems
- Pumps and fans
- Reversing the direction of three-phase motors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient motor control, reducing unnecessary energy consumption
- Durable design minimizes replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Reversing Contactor SCHLP2K09015BD is available for immediate purchase. Ideal for industrial motor control and automation applications.
