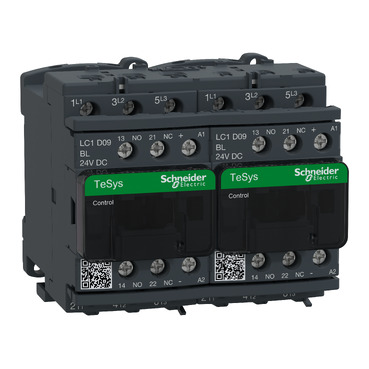

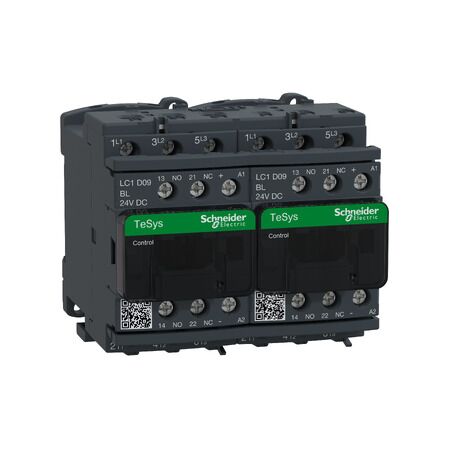

Reversing Contactor | 9A Rated Current | 690V AC Voltage | Compact Design | @Pack of 1 | by Clipsal
Reversing Contactor designed for reliable motor control, featuring a 9A rated operational current and 690V AC voltage. Ideal for industrial applications like conveyor systems and pumps, it ensures efficient forward and reverse operation with high electrical endurance. Built for durability and low power consumption, this contactor is perfect for licensed electricians looking to enhance machinery performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Contactor | 9A Rated Current | 690V AC Voltage | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC2D09BLV
Alternatively Known As: Clipsal Reversing Contactor, Motor Reversing Contactor, SCHLC2D09BLV, Forward Reverse Contactor, Industrial Contactor
Technical Specifications
- Rated operational current: 9A (AC-3)
- Rated operational voltage: 690V AC
- Control voltage: 24V AC
- Number of poles: 3
- Auxiliary contacts: 1 NO + 1 NC
- Mechanical endurance: 10 million operations
- Electrical endurance: 1 million operations (AC-3)
- Mounting: DIN rail or screw fixing
- Operating temperature: -5°C to +60°C
- Dimensions (H x L x W): 80mm x 90mm x 45mm
- Weight: 0.45 kg
Key Features
- Compact design for easy panel integration
- Reliable switching for forward and reverse motor operation
- High electrical and mechanical endurance
- Low power consumption coil
- Suitable for AC-3 applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial motor control
- Conveyor systems
- Pumps and fans
- Machinery requiring forward and reverse operation
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Energy-efficient coil reduces power consumption
- Durable construction extends product lifespan, reducing waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHLC2D09BLV Reversing Contactor is available for immediate purchase. Ideal for industrial motor control applications requiring reliable forward and reverse operation.
