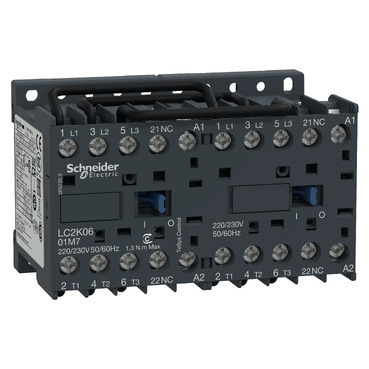

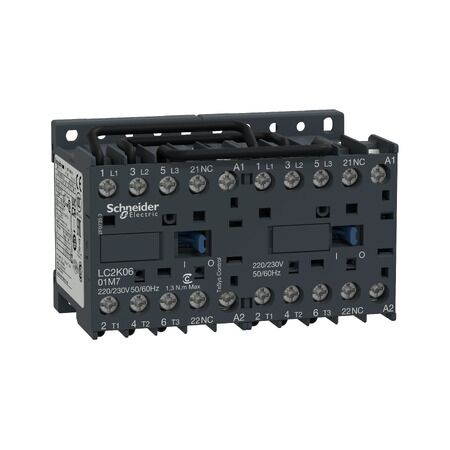

Reversing Contactor | TeSys K Series | 12A Rated | 3-Pole Design | @Quantity of 1 | by Clipsal
Reversing Contactor designed for reliable motor direction control, featuring a compact 3-pole design and rated for 12A at up to 440V. Ideal for industrial automation and motor reversing applications, this TeSys K series contactor ensures high electrical and mechanical endurance, making it perfect for conveyor systems, pumps, and material handling equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Contactor | TeSys K Series | 12A Rated | 3-Pole Design | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC2K1201E7
Alternatively Known As: TeSys K Reversing Contactor, Schneider LC2K1201E7, 3 Pole Motor Reversing Contactor, 12A Reversing Contactor, Industrial Motor Contactor
Technical Specifications
- Type: Reversing Contactor
- Series: TeSys K
- Poles: 3P
- Rated Operational Current: 12A (AC-3/AC-3e, up to 440V)
- Auxiliary Contacts: 1NC
- Coil Voltage: 48V AC
- Electrical Life: 1.2 million cycles (AC-3)
- Mechanical Life: 10 million cycles
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1, IEC 60947-5-1
- RoHS compliant
- Dimensions (H x L x W): 58mm x 80mm x 45mm
- Weight: 0.25 kg
Key Features
- Reversing contactor for reliable motor direction control
- TeSys K series, compact 3-pole design
- AC-3/AC-3e rated up to 440V, 12A
- 1 Normally Closed (NC) auxiliary contact
- 48V AC coil for control circuit compatibility
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor reversing applications
- Industrial automation
- Conveyor systems
- Pumps and fans
- Material handling equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient motor control, reducing energy waste
- Durable design minimizes replacement frequency and electronic waste
- RoHS compliant for reduced hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLC2K1201E7 TeSys K Reversing Contactor is available for immediate purchase. Ideal for industrial motor reversing and automation applications.
