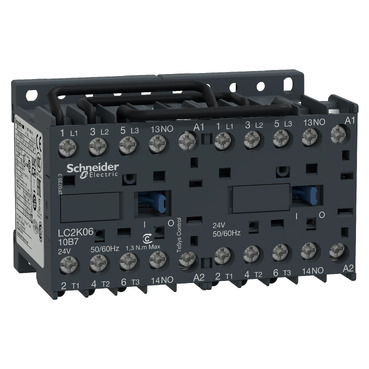

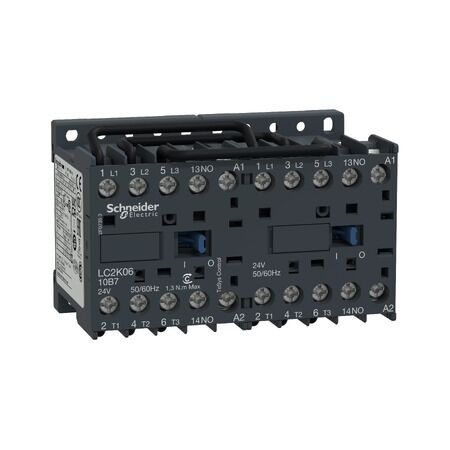

Reversing Contactor TeSys K | 3P 12A | 48VAC Coil | High Endurance | @Pack of 1 | by Clipsal
The Reversing Contactor TeSys K is designed for reliable motor direction control, featuring a compact 3-pole design and an AC-3 utilization category rated up to 440V and 12A. With a 48VAC coil voltage and high electrical and mechanical endurance, it's perfect for industrial motor control and reversing applications, ensuring efficient operation in conveyor systems, pumps, and automated manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Contactor TeSys K | 3P 12A | 48VAC Coil | High Endurance | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC2K1210E7
Alternatively Known As: TeSys K Reversing Contactor, Schneider LC2K1210E7, Motor Reversing Contactor, 3P 12A Contactor, 48VAC Coil Contactor
Technical Specifications
- Type: Reversing Contactor
- Series: TeSys K
- Poles: 3P
- Utilization Category: AC-3
- Rated Operational Voltage: ≤ 440V
- Rated Operational Current: 12A
- Auxiliary Contacts: 1 NO
- Coil Voltage: 48VAC
- Electrical Endurance: 1.2 million cycles (AC-3)
- Mechanical Endurance: 10 million cycles
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 58mm x 80mm x 45mm
- Weight: 0.25 kg
Key Features
- Reversing contactor for reliable motor direction control
- TeSys K series, compact 3-pole design
- AC-3 utilization category up to 440V, 12A
- 1 Normally Open (NO) auxiliary contact
- 48VAC coil voltage for control circuit compatibility
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Reversing applications for machinery
- Conveyor systems
- Pumps and fans
- Automated manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient motor control, reducing energy waste in industrial automation.
- Durable design minimizes replacement frequency and electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys K Reversing Contactor SCHLC2K1210E7 is available for immediate purchase. Ideal for industrial motor control and reversing applications.
