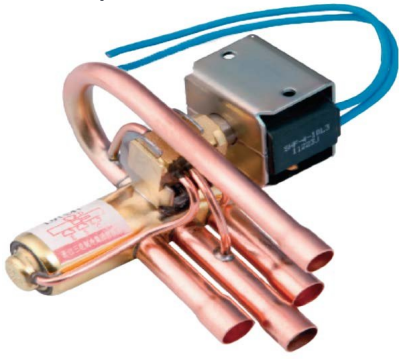

Reversing Valve Coil | 240V Voltage | Lead Wire Connection | R-410A Compatible | by Aspen Pumps
The Reversing Valve Coil is designed for HVAC systems using R-410A refrigerant, featuring a robust 240V voltage and lead wire connection. With a safe working pressure of up to 4,200 kPa and a wide operating temperature range from -30°C to 130°C, this coil ensures reliable performance in air conditioning and heat pump units. Certified by UL, VDE, and CQC, it guarantees quality and safety for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve Coil | 240V Voltage | Lead Wire Connection | R-410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 709-240-L
Alternatively Known As: Reversing Valve Coil, HVAC Valve Coil, R-410A Valve Coil, Heat Pump Valve Coil
Technical Specifications
- Voltage: 240V
- Connection: Lead Wire
- Compatible refrigerant: R-410A
- Safe working pressure: 4,200 kPa
- Operating temperature range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Voltage: 240V
- Connection type: Lead Wire
- Safe working pressure up to 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified UL, VDE, and CQC for quality and safety
Professional Installation Requirements
- Installation by a qualified HVAC technician or electrician is recommended to ensure proper connection and safety compliance.
Applications
- HVAC systems using R-410A refrigerant
- Reversing valves in air conditioning and heat pump units
- Compatible with A1 and A2L refrigerants
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety in appliances
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient HVAC system operation, reducing energy consumption.
- Compatible with low global warming potential refrigerants (A1 and A2L).
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Reversing Valve Coil is available for immediate purchase, ideal for HVAC system repairs and installations using R-410A refrigerant.
