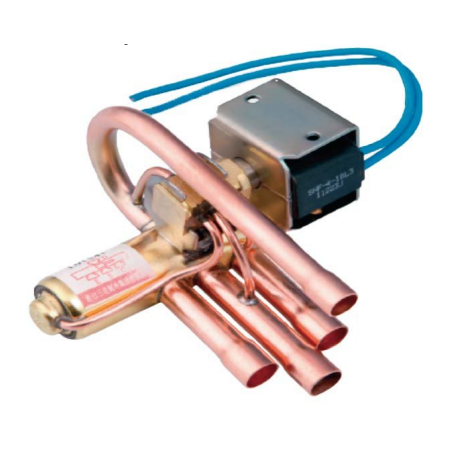

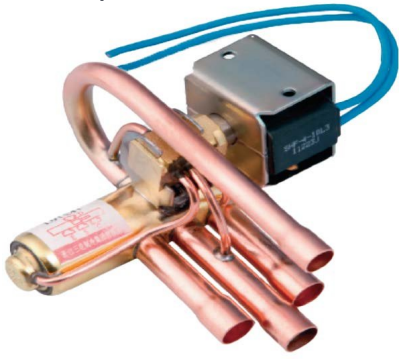

Reversing Valve Coil | 24V Voltage | R-410A Compatible | Safe Working Pressure 4200 kPa | by Aspen Pumps
The Reversing Valve Coil is designed for HVAC systems using R-410A refrigerant, featuring a 24V voltage and a safe working pressure of up to 4,200 kPa. With a wide operating temperature range from -30°C to 130°C, this coil ensures reliable performance in various conditions. Ideal for air conditioning and heat pump applications, it is certified by UL, VDE, and CQC for safety and quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve Coil | 24V Voltage | R-410A Compatible | Safe Working Pressure 4200 kPa | by Aspen Pumps
Brand: Aspen Pumps
SKU: 709-24-L
Alternatively Known As: Reversing Valve Coil 24V, HVAC Valve Coil, R-410A Valve Coil, Solenoid Coil for Reversing Valve
Technical Specifications
- Voltage: 24V
- Connection: Lead Wire
- Refrigerant Compatibility: R-410A
- Safe Working Pressure: 4,200 kPa
- Operating Temperature Range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Voltage: 24V
- Connection type: Lead Wire
- Developed specifically for use with R-410A refrigerant
- Safe working pressure up to 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified by UL, VDE, and CQC for safety and quality
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure proper electrical connections and system compatibility.
Applications
- HVAC systems using R-410A refrigerant
- Air conditioning and heat pump reversing valve operations
- Compatible with A1 and A2L refrigerants
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Supports efficient HVAC system operation, reducing energy consumption.
- Compatible with environmentally safer refrigerants like R-410A.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Reversing Valve Coil 24V is available for immediate purchase, ideal for HVAC system maintenance and upgrades.
