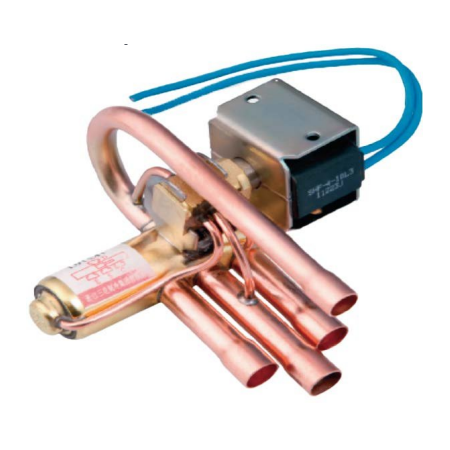

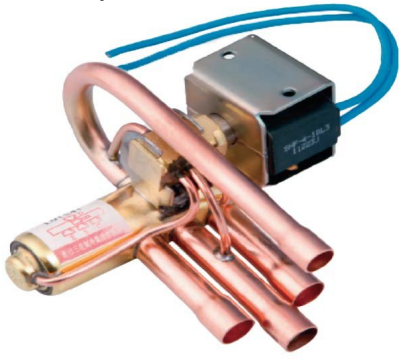

Reversing Valve Coil | 24Vac Voltage | Spade Terminals | Safe Working Pressure 4200 kPa | by Aspen Pumps
The Reversing Valve Coil is designed for HVAC systems using R-410A refrigerant, featuring a 24Vac voltage and spade terminal connections. With a safe working pressure of up to 4,200 kPa and a wide operating temperature range from -30°C to 130°C, this coil ensures reliable performance in air conditioning and heat pump units. Certified to UL, VDE, and CQC standards, it supports efficient HVAC operation and is ideal for licensed technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve Coil | 24Vac Voltage | Spade Terminals | Safe Working Pressure 4200 kPa | by Aspen Pumps
Brand: Aspen Pumps
SKU: 709-24-S
Alternatively Known As: Reversing Valve Coil 24Vac, HVAC Reversing Valve Coil, R-410A Valve Coil
Technical Specifications
- Voltage: 24Vac
- Connection: Spade terminals
- Safe working pressure: 4,200 kPa
- Operating temperature range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Compatible refrigerants: R-410A, A1 and A2L refrigerants
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Voltage: 24Vac
- Connection type: Spade terminals
- Safe working pressure up to 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified to UL, VDE, and CQC standards
- Developed specifically for use with R-410A refrigerant
Professional Installation Requirements
- Installation must be performed by a licensed HVAC technician or qualified electrician to ensure compliance with safety and operational standards.
Applications
- HVAC systems using R-410A refrigerant
- Reversing valves in air conditioning and heat pump units
- Compatible with A1 and A2L refrigerants
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient HVAC system operation, reducing energy consumption.
- Compatible with low global warming potential refrigerants (A1 and A2L).
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Aspen Pumps Reversing Valve Coil is available for immediate purchase, ideal for HVAC systems requiring reliable reversing valve operation with R-410A and compatible refrigerants.
