Trade Discount 17%

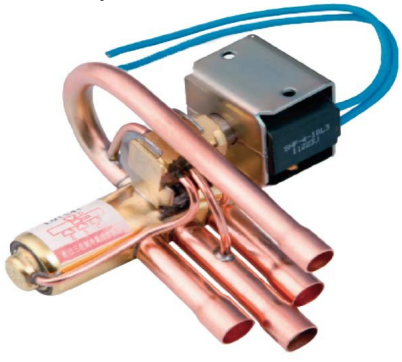

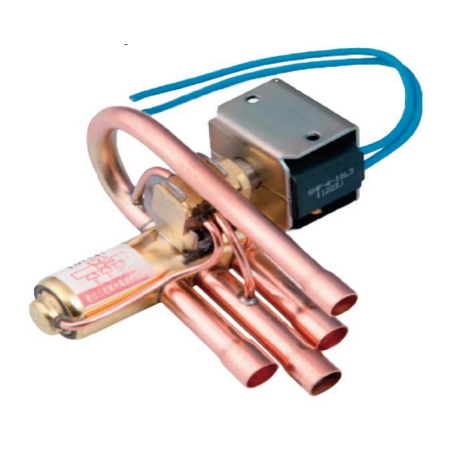

Reversing Valve | Compatible with R-410A | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
Reversing Valve designed for HVAC systems, compatible with R-410A refrigerant and featuring a safe working pressure of 4,200 kPa. With a wide operating temperature range from -30°C to 130°C, this valve is ideal for both air conditioning and heat pump systems. Certified by UL, VDE, and CQC, it ensures safety and quality for commercial and residential refrigeration applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve | Compatible with R-410A | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
Brand: Aspen Pumps
SKU: 708-0506-U
Alternatively Known As: HVAC Reversing Valve, Heat Pump Reversing Valve, R-410A Reversing Valve
Technical Specifications
- Capacity: 4.5 kW (1.25 Tons)
- Connections: 5/16 inch and 3/8 inch
- Safe working pressure: 4,200 kPa
- Operating temperature range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Compatible with R-410A refrigerant
- Safe working pressure of 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified UL, VDE, and CQC for safety and quality
Professional Installation Requirements
- Installation by a qualified HVAC technician is recommended to ensure proper integration and safety compliance.
Applications
- HVAC systems using R-410A refrigerant
- Air conditioning and heat pump systems
- Commercial and residential refrigeration
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Supports efficient heat pump operation reducing energy consumption
- Compatible with environmentally safer refrigerant R-410A
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Reversing Valve is available for immediate purchase, ideal for HVAC systems requiring reliable reversing valve solutions compatible with R-410A refrigerant.
