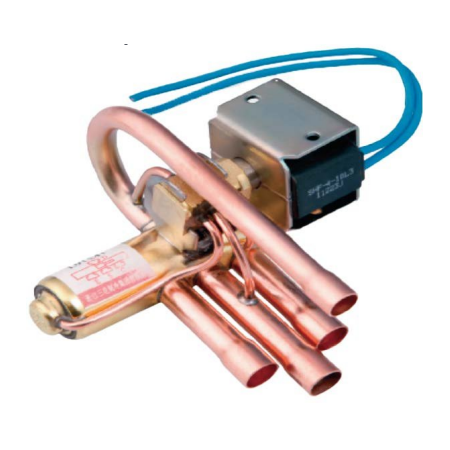

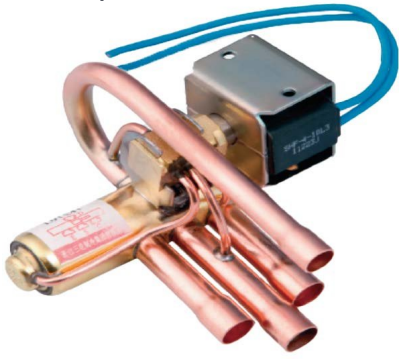

Reversing Valve | Compatible with R-410A | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
The Reversing Valve is designed for HVAC systems using R-410A refrigerant, ensuring efficient operation in both air conditioning and heat pump applications. With a safe working pressure of up to 4,200 kPa and a wide operating temperature range from -30°C to 130°C, this valve is certified by UL, VDE, and CQC for safety and quality, making it ideal for both commercial and residential refrigeration needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve | Compatible with R-410A | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
Brand: Aspen Pumps
SKU: 708-1218-35
Alternatively Known As: HVAC reversing valve, R-410A reversing valve, heat pump reversing valve, refrigeration reversing valve
Technical Specifications
- Capacity: 37.3 kW (10 Tons)
- Connections: 3/4 inch and 1 1/8 inch
- Refrigerant Compatibility: R-410A
- Safe Working Pressure: 4,200 kPa
- Operating Temperature Range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 120mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Compatible with R-410A refrigerant
- Safe working pressure up to 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified by UL, VDE, and CQC for safety and quality
Professional Installation Requirements
- Installation by a licensed HVAC technician is recommended to ensure proper integration and safety compliance.
Applications
- HVAC systems using R-410A refrigerant
- Air conditioning and heat pump systems
- Commercial and residential refrigeration
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Supports efficient heat pump operation reducing energy consumption
- Compatible with environmentally safer refrigerants like R-410A
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Reversing Valve is available for immediate purchase, ideal for HVAC and refrigeration system applications.
