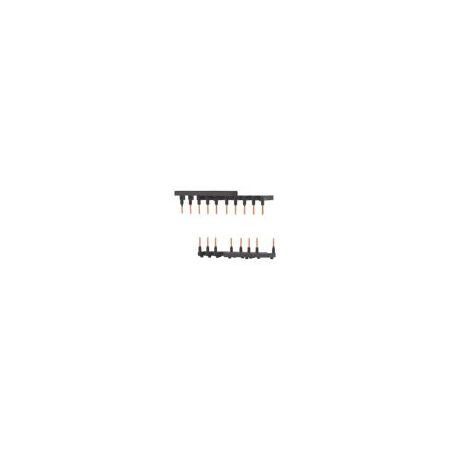

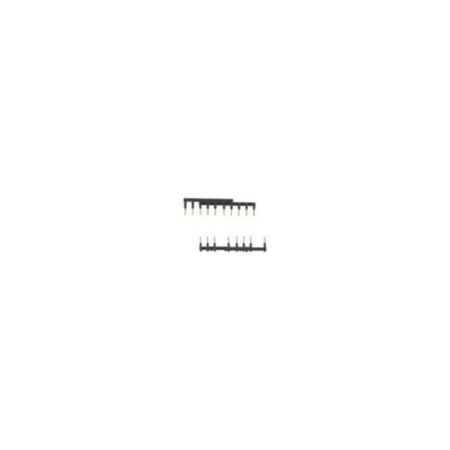

Reversing Wiring Kit | 22A Rated Current | Integrated Control Cables | Compact Design by Eaton
Reversing wiring kit with 22A rated current and integrated control cables—ideal for electrical control panels and industrial automation systems. Built for efficient motor control, with compact design for easy panel integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Wiring Kit | 22A Rated Current | Integrated Control Cables | Compact Design by Eaton
Brand: Eaton
SKU: Y7-220209
Alternatively Known As: Eaton MVS Reversing Wiring Kit, MVS Accessory Reversing Kit, DILEM Reversing Wiring Accessory
Technical Specifications
- Rated operational current: 22 A
- Ambient operating temperature range: -25 °C to 50 °C
- Heat dissipation: 2.1 W current-dependent
- Control cables integrated for electrical interlock
- Certifications: CSA, UL, IEC/EN 60947-4-1 compliant
- Dimensions (H x L x W): 28mm x 84mm x 21mm
- Weight: 0.026 kg
Key Features
- Main current wiring for reversing combinations
- Includes integrated control cables for electrical interlock
- Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
- Compact size suitable for panel integration
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder familiar with reversing wiring and motor control systems.
Applications
- Electrical control panels requiring reversing wiring combinations
- Industrial automation systems
- Motor control and reversing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for efficient electrical control reducing energy waste
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard Eaton warranty applies; refer to Eaton product documentation for details.
Available Now
The Eaton Moeller MVS-WB-EM Reversing Wiring Kit is available for immediate purchase, ideal for industrial and commercial electrical control panel applications.
