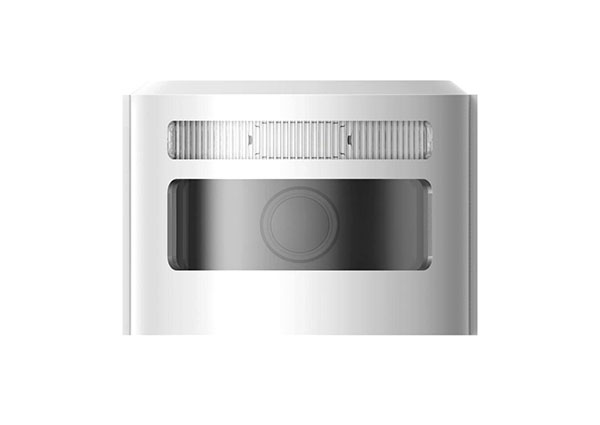

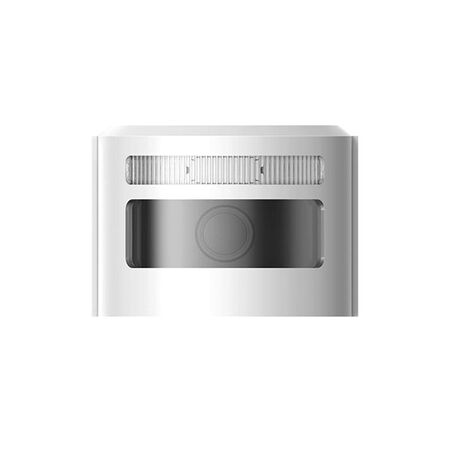

RF Camera Module Hikvision
Hikvision RF camera module features RF connectivity. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO RF Camera Module, Video Verification Camera Module, Wireless Alarm Camera Module
Technical Specifications
- Model: DS-PDCM15PF-IR
- Detection Method: Video verification
- Focal Length: 2.0 mm at F2.25
- Field Angle: 137.2° horizontal, 80.1° vertical
- Image Resolution: 640 × 480, 320 × 240 or 160 × 120
- Image Type: JPEG
- Digital Noise Reduction: 3D
- Infrared Illumination Range: 15 m
- Day/Night Switching: Automatic
- Communication Interface: 12-bit data interface
- Power Supply: 3 VDC
- Power Consumption: 1200 mA
- Operating Temperature: -25°C to 60°C
- Storage Temperature: -25°C to 60°C
- Operating Humidity: 10% to 90% RH
- Ingress Protection: IP66
- Dimensions (H x L x W): 72.35mm x 53mm x 74.1mm
- Weight: 0.155 kg
Key Features
- Designed for RF-enabled Hikvision AX PRO alarm detectors
- Provides video verification for alarm events
- Wide 137.2° horizontal field of view
- Automatic day/night operation with infrared illumination
- Infrared fill light with a range of up to 15 m
- Compact module suitable for outdoor detector assemblies
- IP66-rated enclosure for dust and water protection
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security or alarm technician. Integrate the module with compatible Hikvision AX PRO equipment and follow the applicable manufacturer installation instructions.
Applications
- Video verification for Hikvision AX PRO wireless alarm systems
- Outdoor security and intrusion detection installations
- CCTV and electronic security installations requiring alarm-event image capture
- Residential, commercial and light-industrial premises monitoring
Environmental Benefits
- Low-voltage 3 VDC operation supports low-power alarm-system integration
- Video verification can help reduce unnecessary alarm responses and associated travel
- Durable IP66 construction may extend service life and reduce replacement waste
- Electronic components should be recycled through an appropriate e-waste collection programme at end of life
Warranty Information
Hikvision Oceania warranty support applies through authorised distribution channels; the product-specific warranty period is subject to the applicable Hikvision or distributor terms. The published five-year Hikvision Oceania warranty applies to listed premium project-oriented product series and does not identify this RF camera module.
Available Now
Available through Hikvision and authorised Australian security-system distributors.
