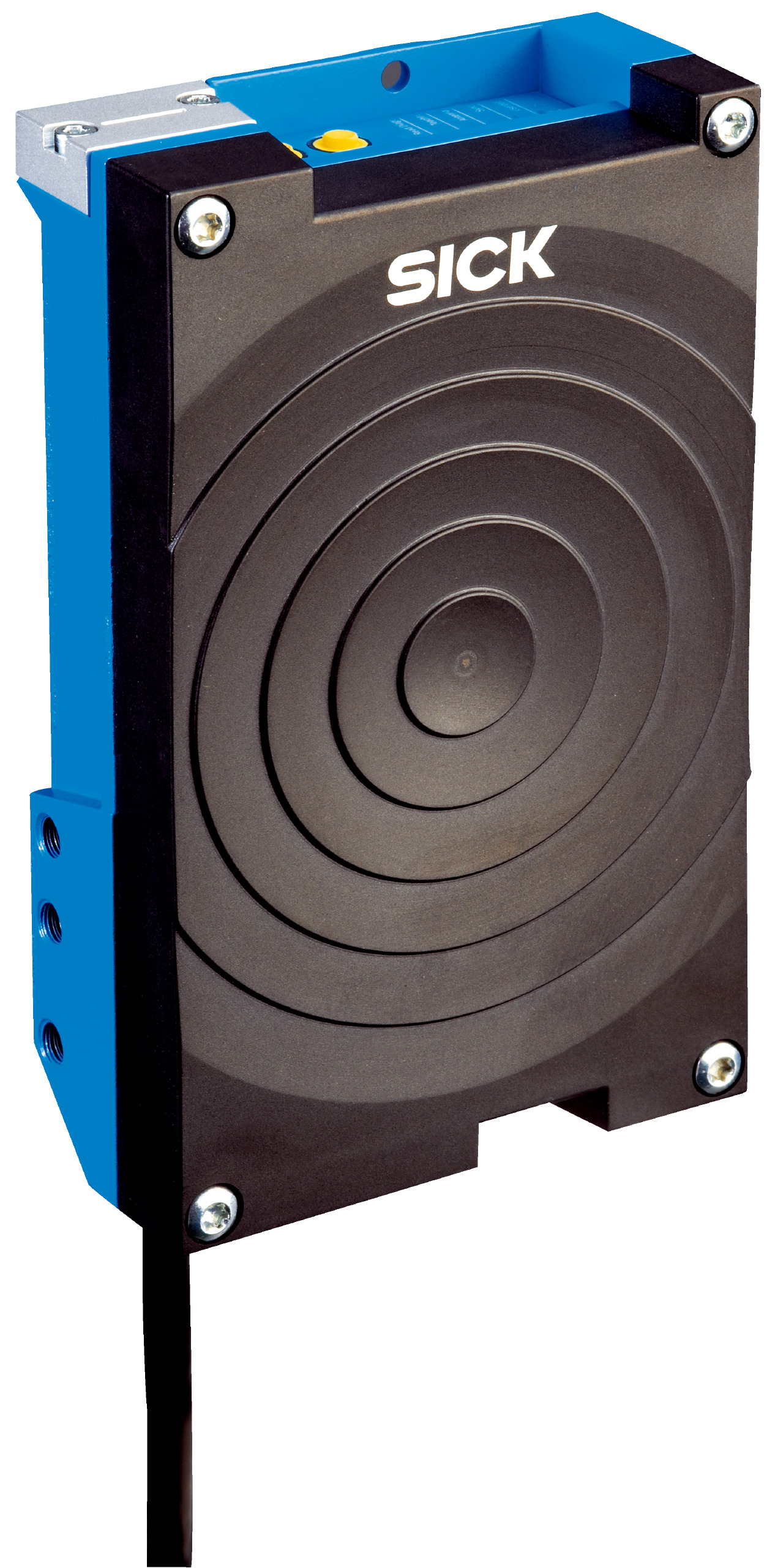

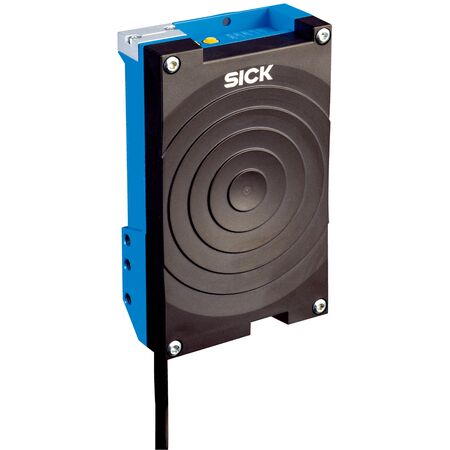

RFID Reader RFH620-1000001 | Short Range Read/Write | IP67 Enclosure | by SICK
The RFID Reader RFH620-1000001 is a short-range read/write device designed for industrial automation, featuring a robust IP67 enclosure and supporting ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 standards. With a read range of up to 150 mm and multiple interface options including PROFINET and EtherCAT, it's perfect for asset tracking, manufacturing process control, and logistics management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RFID Reader RFH620-1000001 | Short Range Read/Write | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1044838
Alternatively Known As: RFID Reader, RFID Transceiver, HF RFID Device, Industrial RFID Reader, Proximity RFID Reader
Technical Specifications
- Frequency band: HF (13.56 MHz)
- Carrier frequency: 13.56 MHz
- RFID standards: ISO/IEC 15693, ISO/IEC 18000-3 Mode 1
- Read range: ≤ 150 mm
- Typical access times: UID read 18 ms, Read 1 block 13 ms, Write 1 block 16 ms
- Air interface data transmission rate: 26 kbit/s (default)
- Connection type: 1 x cable, 15-pin D-Sub HD male connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 5 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Weight: 520 g with connecting cable
- MTBF: > 100 years
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 2 physical plus 2 logical via optional memory
- Digital outputs: 2 physical plus 2 logical via optional memory
- Indicators: 6 multi-color LEDs, 1 beeper
- Configuration software: SOPAS ET
- Memory card: microSD for parameter cloning
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Dimensions (H x L x W): 39mm x 147mm x 88mm
- Weight: 0.52 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Global radio approval with HF frequency band (13.56 MHz)
- Supports ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 RFID standards
- Read range up to 150 mm
- Multiple interface options including PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Wide ambient operating temperature range from -20 °C to +60 °C
- High MTBF greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and identification
- Manufacturing process control
- Logistics and warehouse management
- Access control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing resource waste
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFH620-1000001 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
