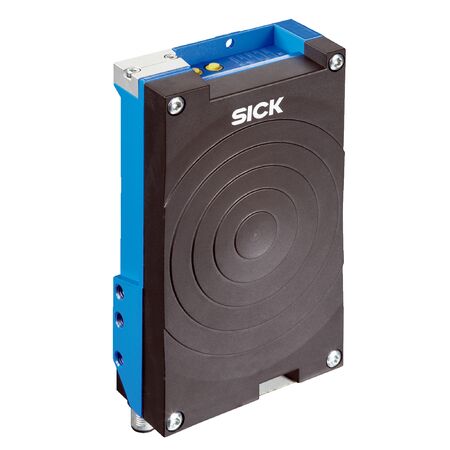

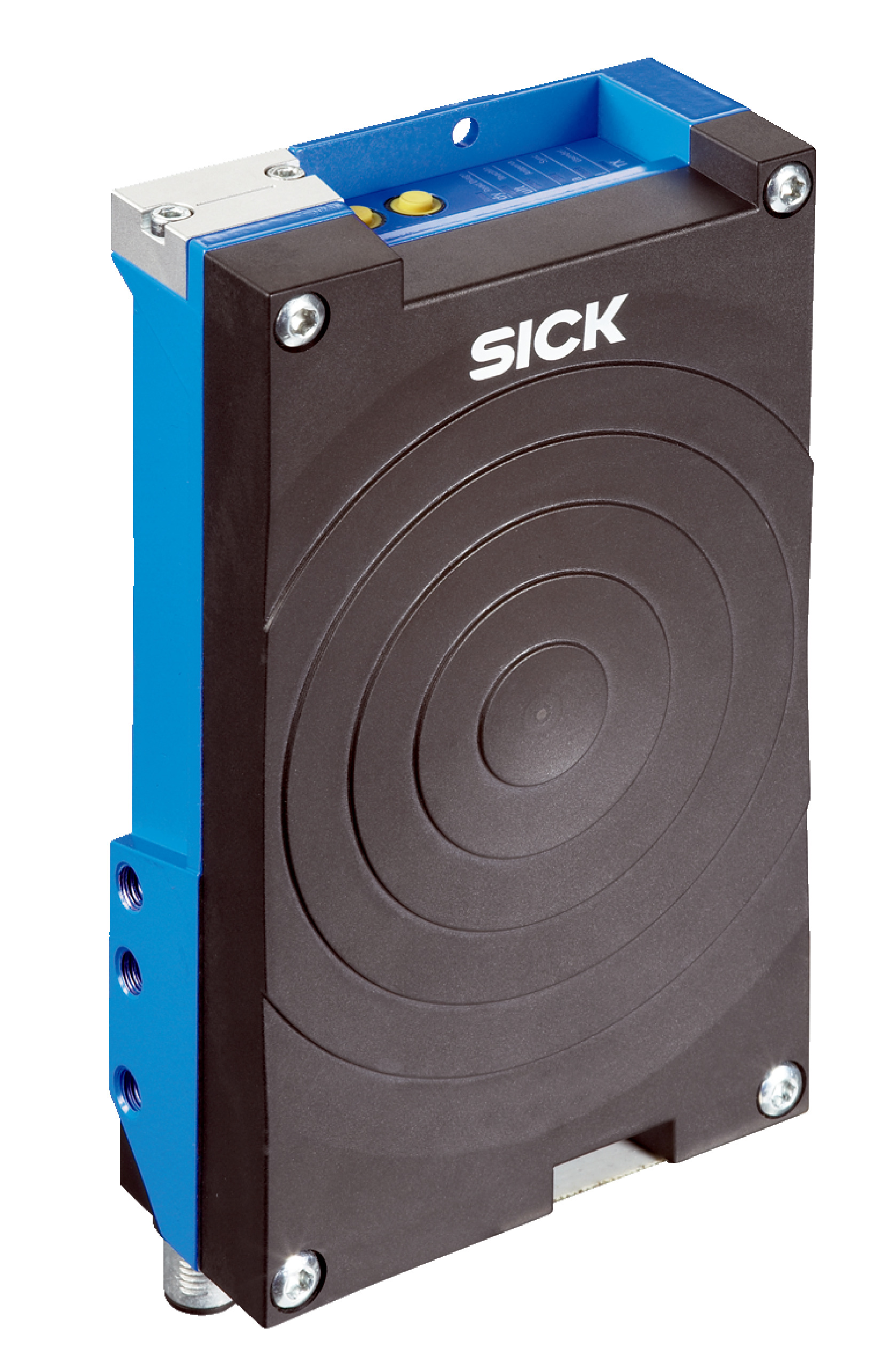

RFID Reader RFH620-1001201 | Short Range | Integrated Antenna | IP67 Rated | by SICK
The RFH620-1001201 RFID Reader is a short-range read/write device with an integrated antenna, perfect for industrial automation and asset tracking. With a read range of up to 150 mm and support for ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 standards, it ensures reliable performance in various applications. Its robust IP67-rated housing and low power consumption make it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RFID Reader RFH620-1001201 | Short Range | Integrated Antenna | IP67 Rated | by SICK
Brand: SICK
SKU: 1044839
Alternatively Known As: RFID Reader, RFID Transceiver, Short Range RFID Device, Industrial RFID Reader
Technical Specifications
- Version: Short Range
- Product category: RFID read/write device with integrated antenna
- Radio approval: Global
- Frequency band: HF (13.56 MHz)
- Carrier frequency: 13.56 MHz
- RFID standard: ISO/IEC 15693, ISO/IEC 18000-3 Mode 1
- Connection type: Ethernet
- Read range: ≤ 150 mm
- Typical access times: UID read (64 bits/8 bytes): 18 ms, Read 1 block (32 bit/4 Byte): 13 ms, Write 1 block (32 bit/4 Byte): 16 ms, Read 28 blocks (896 bit/112 Byte): 64 ms, Write 28 blocks (896 bit/112 Byte): 442 ms
- Air interface data transmission rate: 26 kbit/s (default)
- Connection type: 1 x M12, 12-pin male connector, A-coded; M12, 4-pin female connector, D-coded
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typically 5 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Housing color: Blue, black
- Enclosure rating: IP67
- Protection class: III
- MTBF: > 100 years
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 1 physical, 2 additional logical inputs via optional parameter memory
- Digital outputs: 2 additional logical outputs via optional parameter memory
- Optical indicators: 6 multi-color LEDs
- Acoustic indicators: 1 beeper
- Configuration software: SOPAS ET
- Memory card: microSD for parameter cloning
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +70 °C
- Permissible relative humidity: 95%, non-condensing
- Dimensions (H x L x W): 39mm x 147mm x 88mm
- Weight: 0.45 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Global radio approval with HF frequency band (13.56 MHz)
- Supports ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 RFID standards
- Ethernet connection with multiple fieldbus integration options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, and PROFIBUS DP
- High read range up to 150 mm
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Wide ambient operating temperature range from -20 °C to +60 °C
- Multiple digital inputs and outputs with multi-color LED and acoustic indicators
- MicroSD memory card for parameter cloning
- Low power consumption typically 5 W
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial RFID systems and compliant with local electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Manufacturing process control
- Logistics and warehouse management
- Access control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFH620-1001201 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
