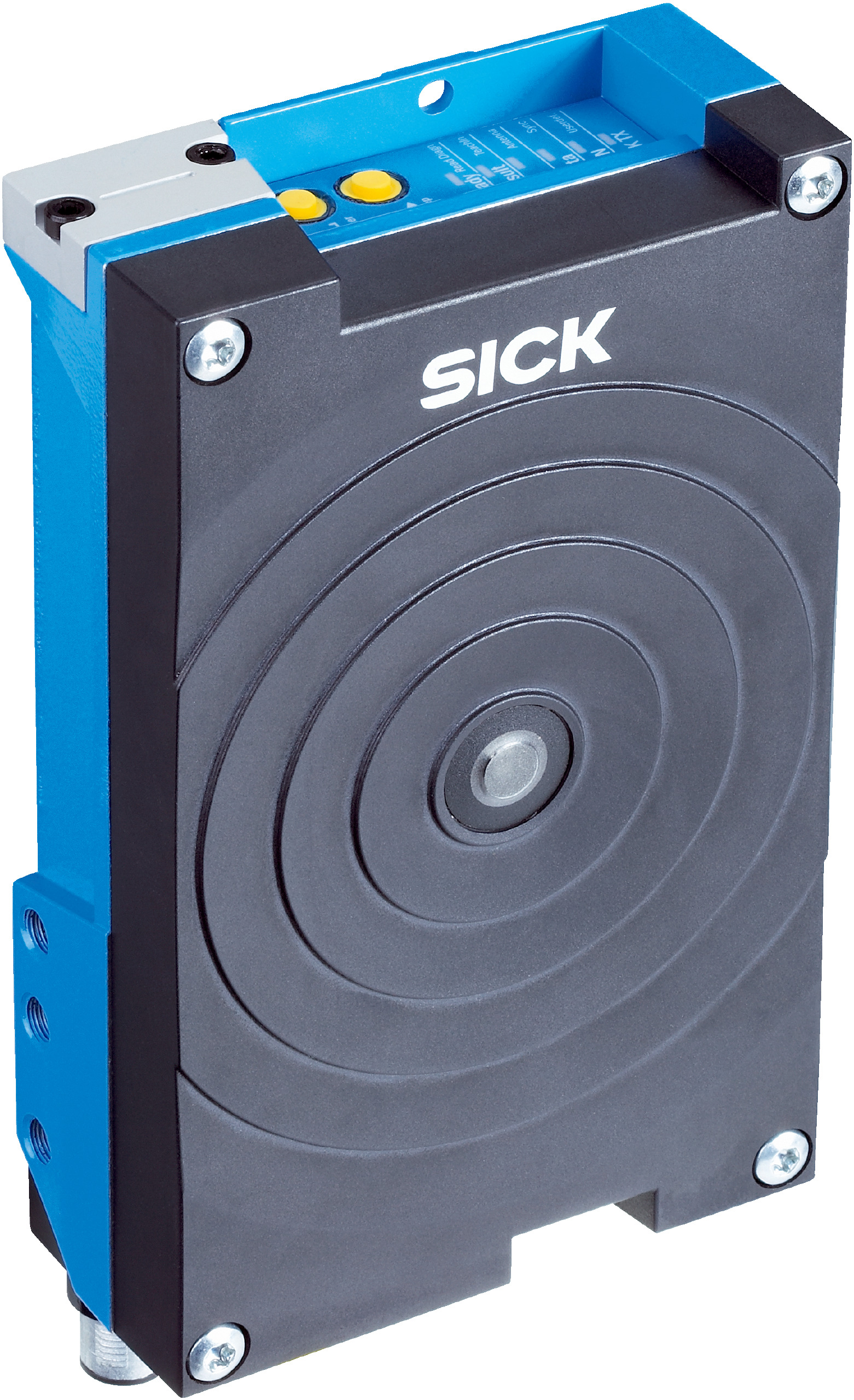

RFID Reader RFH630 | Mid Range Read/Write Device | Integrated Antenna | IP67 Rated | by SICK
The RFH630 RFID Reader is a mid-range read/write device designed for industrial automation and asset tracking. With an integrated antenna and a read range of up to 240 mm, it supports ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 standards. Its robust IP67-rated housing ensures durability in harsh environments, making it ideal for logistics, manufacturing, and access control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RFID Reader RFH630 | Mid Range Read/Write Device | Integrated Antenna | IP67 Rated | by SICK
Brand: SICK
SKU: 1054746
Alternatively Known As: SICK RFID Reader RFH630, Mid Range RFID Device, Industrial RFID Reader, Ethernet RFID Reader
Technical Specifications
- Version: Mid Range
- Product category: RFID read/write device with integrated antenna
- Radio approval: Global
- Frequency band: HF (13.56 MHz)
- Carrier frequency: 13.56 MHz
- RFID standard: ISO/IEC 15693, ISO/IEC 18000-3 Mode 1
- Connection type: Ethernet
- Read range: ≤ 240 mm
- Antenna: Integrated with 1 external antenna connection
- Typical access times: UID read (64 bits/8 bytes): 18 ms, Read 1 block (32 bit/4 Byte): 13 ms, Write 1 block (32 bit/4 Byte): 16 ms
- Air interface data transmission rate: 26 kbit/s (default)
- Connection type: 1 x M12, 17-pin male connector, A-coded; M12, 4-pin female connector, D-coded
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 8 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Housing color: Blue, black
- Enclosure rating: IP67
- Protection class: III
- MTBF: > 100 years
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 2 physical plus 2 logical via optional parameter memory
- Digital outputs: 2 physical plus 2 logical via optional parameter memory
- Optical indicators: 6 LEDs multi-color, 1 RGB LED
- Acoustic indicators: 1 beeper
- Configuration software: SOPAS ET
- Memory card: microSD for parameter cloning
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Permissible relative humidity: 95%, non-condensing
- Dimensions (H x L x W): 39mm x 147mm x 88mm
- Weight: 0.71 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- Global radio approval with HF frequency band (13.56 MHz)
- Supports ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 RFID standards
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, and PROFIBUS DP
- Read range up to 240 mm
- High data transmission rates up to 1,000 kbit/s
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Wide ambient operating temperature range from -20 °C to +50 °C
- Multiple digital inputs and outputs with optical and acoustic indicators
- MicroSD memory card for parameter cloning
Professional Installation Requirements
- Professional installation by a qualified electrician or trained technician is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can optimize resource use and reduce energy consumption
- Durable IP67 rated housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

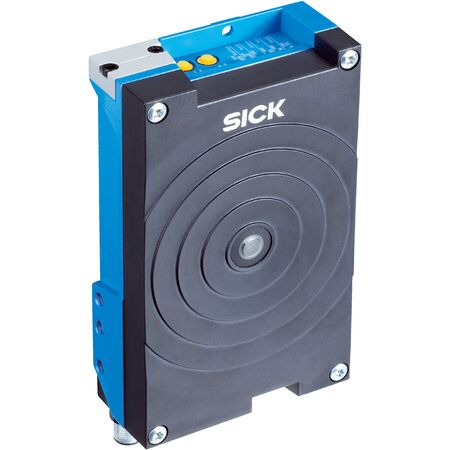

The SICK RFH630-1102101 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
