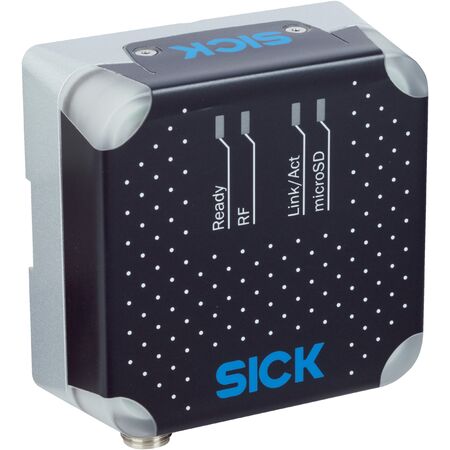

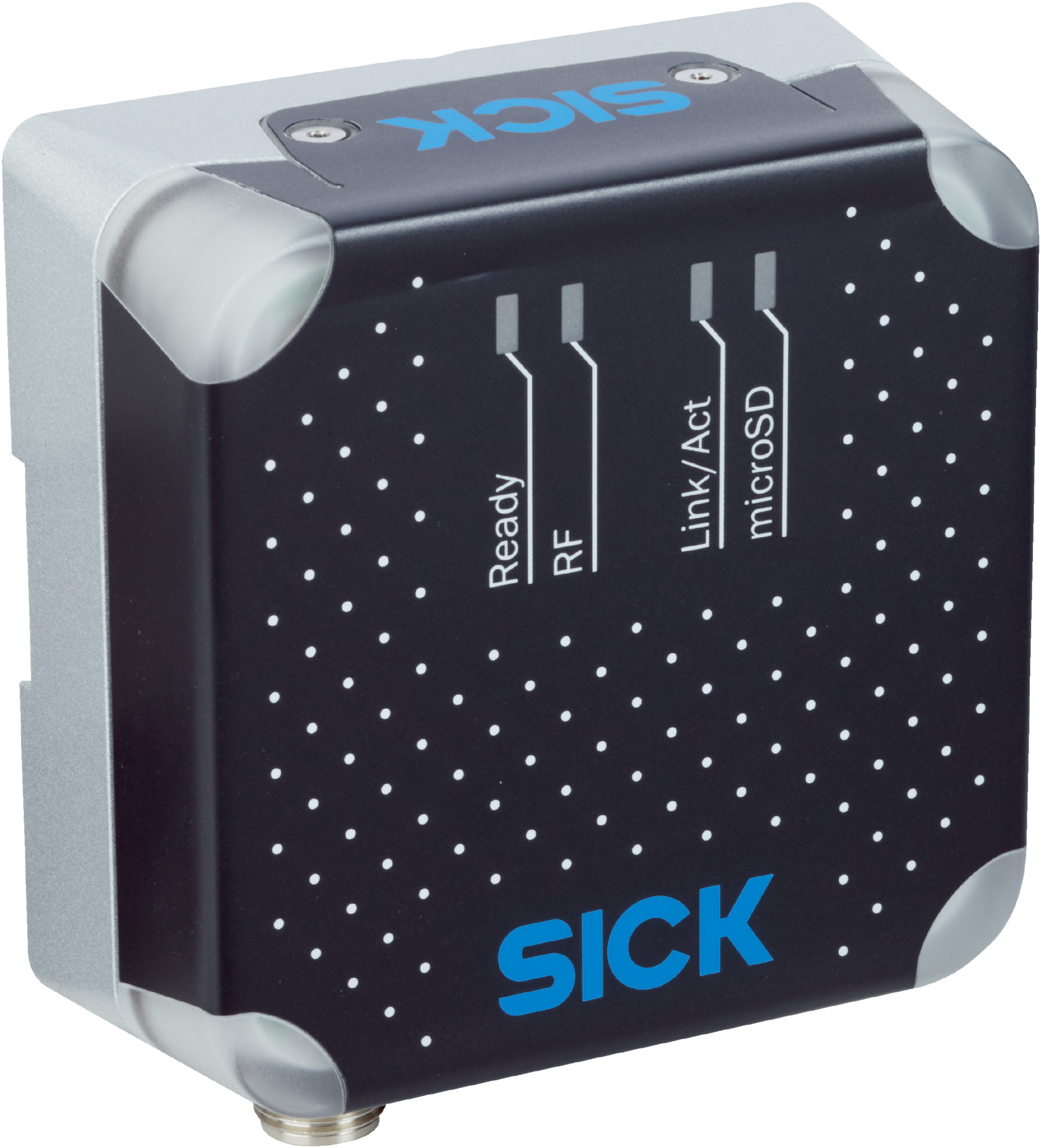

RFID Reader RFU610-10610 | UHF 860-960 MHz | IP67 Enclosure | Integrated Antenna | by SICK
The RFU610-10610 RFID reader is a short-range read/write device designed for industrial automation and asset tracking. Operating in the UHF frequency band (860 MHz to 960 MHz) with an integrated antenna and 110° aperture angle, it supports EPCglobal UHF Class 1 Generation 2 standards. With a robust IP67-rated housing, this device is perfect for logistics, manufacturing process control, and access security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 917.3 MHz to 920.3 MHz
- Output power: 40 mW (EIRP, 16 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Aperture angle: 110°
- Read range: ≤ 0.5 m
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Connection type: PoE, Power and Ethernet; 1 x M12 4-pin male, 1 x M12 8-pin female, 1 x M8 4-pin female, 1 x USB 5-pin micro-B
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W operational, 3 W standby
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- MTBF: 22 years
- Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Digital inputs: 1 physical switching input (max 40 mA)
- Optical indicators: 4 multi-color LEDs and 4 RGB LEDs
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-6:2007
- Shock resistance: EN 60068-2-27:2008
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 917.3 MHz to 920.3 MHz
- Adjustable transmitting power with circular polarization
- Integrated antenna with 110° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple connection types including PoE, Power and Ethernet
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Supports Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Equipped with 4 multi-color LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card support for parameter cloning and data storage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 6 W operational and 3 W standby power usage
- Durable IP67 rated housing ensures long product life and reduces electronic waste
- Supports efficient asset tracking to reduce resource waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU610-10610 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
