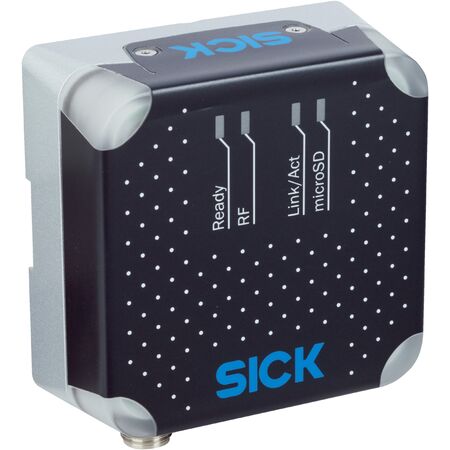

RFID Reader RFU610-10618 | UHF Frequency 860-960 MHz | IP67 Rated | by SICK

BRAND: SICK
SKU: 1104448
$3,096.00 List price: $3,891.30
+ −
30 Days Return Electricians Unlock Trade Access
The RFU610-10618 RFID Reader is a short-range read/write device designed for industrial automation and asset tracking. Operating in the UHF frequency band (860 MHz to 960 MHz) with an output power of 40 mW, it features an integrated antenna and a robust IP67-rated housing. Ideal for logistics and manufacturing applications, this reader supports multiple connection options including PoE and USB, ensuring seamless integration into existing systems.
Technical Specifications
  • Frequency band: UHF (860 MHz to 960 MHz)
  • Carrier frequency: 918.25 MHz to 922.75 MHz
  • Output power: 40 mW (EIRP, 16 dBm)
  • RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
  • Modulation: PR-ASK
  • Connection type: PoE, Power and Ethernet, USB, M12 and M8 connectors
  • Aperture angle: 110°
  • Read range: ≤ 0.5 m
  • Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
  • Supply voltage: 18 V DC to 30 V DC
  • Power consumption: 6 W, standby 3 W
  • Housing material: Aluminum die cast and Plastic (PPS)
  • Enclosure rating: IP67
  • Protection class: III
  • MTBF: 22 years
  • Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
  • Digital inputs: 1 physical switching input
  • Optical indicators: 4 multi-color LEDs
  • Operator interface: Web server
  • Configuration software: SOPAS ET
  • Programming interface: SICK AppStudio
  • Memory card: microSD for parameter cloning and data storage
  • Dimensions (H x L x W): 38mm x 92mm x 80mm
  • Weight: 0.313 kg
Key Features
  • Short range RFID read/write device with integrated antenna
  • Operates in UHF frequency band (860 MHz to 960 MHz)
  • Carrier frequency range: 918.25 MHz to 922.75 MHz
  • Output power of 40 mW (EIRP, 16 dBm)
  • Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
  • Adjustable transmitting power with circular polarization
  • Aperture angle of 110°
  • Read range up to 0.5 meters
  • Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
  • Multiple connection options including PoE, Ethernet, USB, and M12/M8 connectors
  • Supports Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, and USB interfaces
  • Equipped with 4 multi-color LEDs for device status and process feedback
  • Web server operator interface and SOPAS ET configuration software
  • MicroSD memory card slot for parameter cloning and data storage
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
  • Industrial automation for asset tracking and identification
  • Logistics and warehouse management
  • Manufacturing process control
  • Access control and security systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables efficient asset tracking reducing waste and loss
  • Supports energy-efficient PoE power supply
  • Durable IP67 rated housing extends product lifespan reducing replacement waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK RFU610-10618 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
