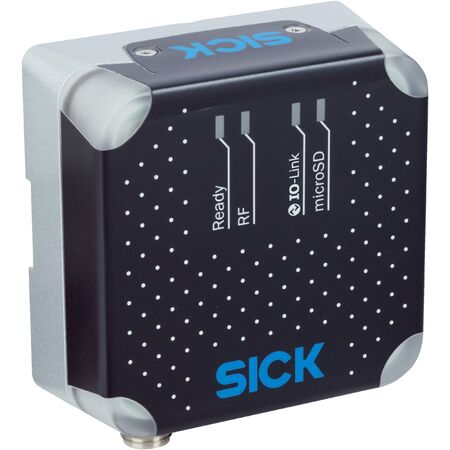

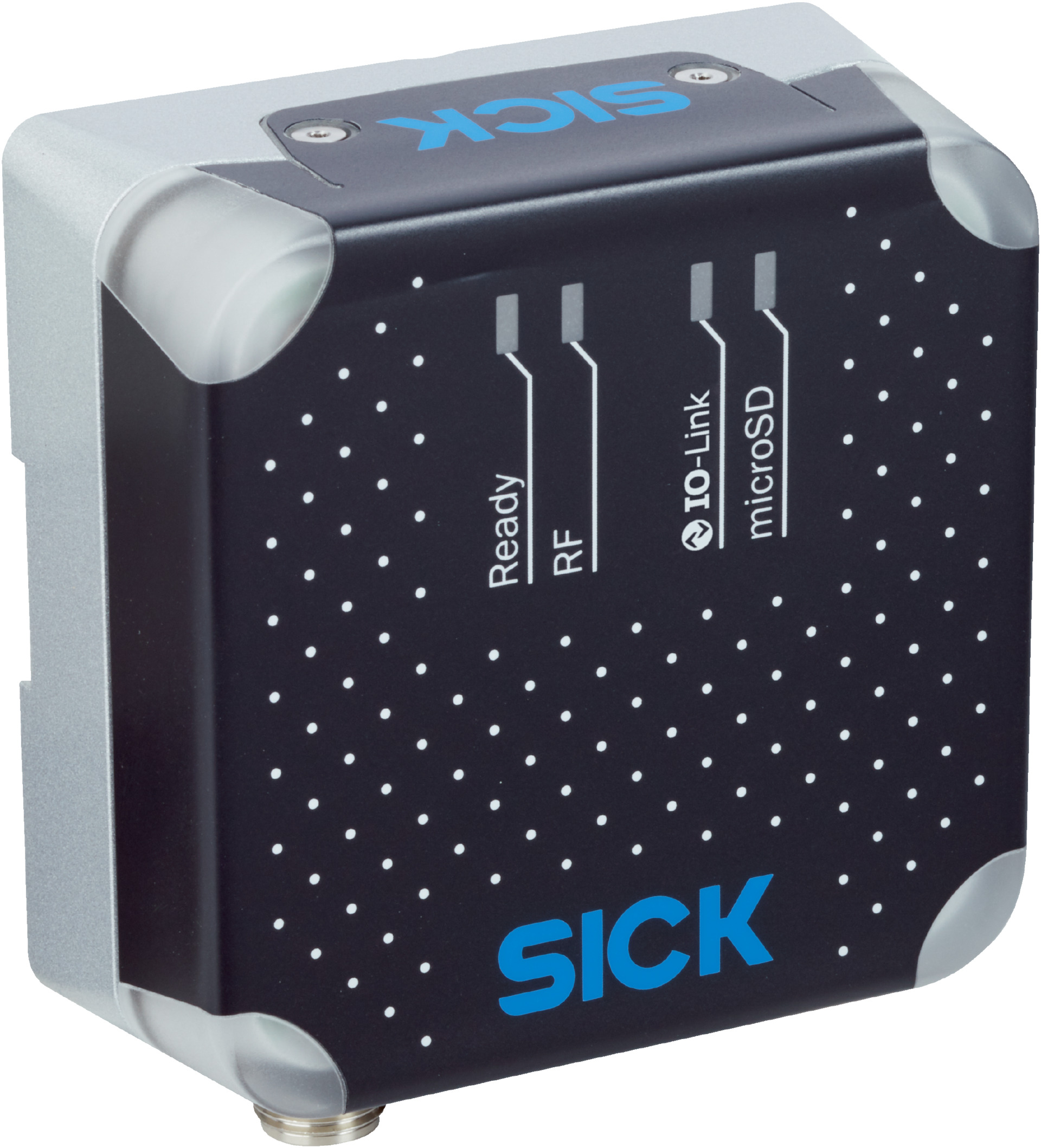

RFID Reader RFU610-10700 | UHF Frequency 860-960 MHz | IP67 Rated | by SICK
The RFU610-10700 RFID Reader is a short-range read/write device designed for industrial automation and asset tracking. Operating in the UHF frequency band (860 MHz to 960 MHz) with an adjustable output power of 25 mW, it supports EPCglobal UHF Class 1 Gen 2 standards. With an IP67 enclosure rating, this robust device is perfect for logistics, manufacturing, and access control applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: 25 mW (ERP, 14 dBm), adjustable
- RFID standard: EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: IO-Link V1.1, 1 x M12 4-pin male connector, 1 x M8 4-pin socket, 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W (standby 3 W)
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- Weight: 313 g
- MTBF: 22.25 years
- Ambient operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- EMC compliance: EN 301489-1 V2.1.1 (2017), EN 301489-3 V1.6.1 (2013)
- Vibration resistance: IEC 60068-2-6:2007, IEC 60068-2-64:2008
- Shock resistance: EN 60068-2-27:2008
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Operates in UHF frequency band (860 MHz to 960 MHz)
- Carrier frequency range: 865.7 MHz to 867.5 MHz
- Output power of 25 mW (ERP, 14 dBm) with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio greater than 5 dB
- Aperture angle of 110°
- Connection via IO-Link with data transmission rate COM3 (230.4 kBaud)
- Equipped with 1 physical digital input and multi-color LED indicators
- Housing made of aluminum die cast and plastic (PPS) with IP67 enclosure rating
- Operating temperature range from -25 °C to +50 °C
- Shock and vibration resistant according to IEC and EN standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can optimize resource use and reduce energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU610-10700 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
