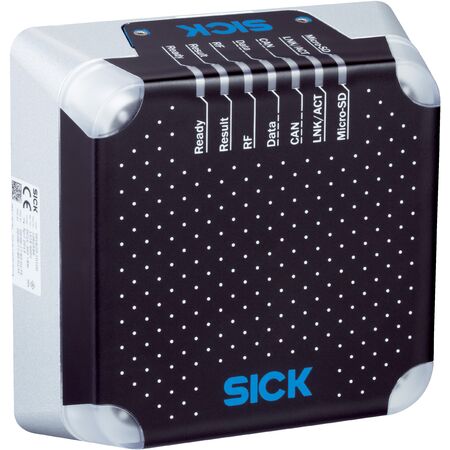

RFID Reader RFU620-10100 | UHF 860-960 MHz | IP67 Rated | Integrated Antenna | by SICK
The RFU620-10100 RFID reader is a mid-range read/write device designed for industrial automation and asset tracking. Operating in the UHF frequency band from 860 MHz to 960 MHz, it features an integrated antenna with a read range of up to 2 meters. With multiple interface options and an IP67 rated housing, this device is built for durability and efficiency in logistics and manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: 0.25 W ERP (24 dBm)
- Modulation: PR-ASK
- Connection type: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Antenna: Integrated, circular polarization, axial ratio typ. 2 dB, front-to-back ratio > 5 dB
- Power consumption: Typical 8 W, with heating typical 16 W
- Supply voltage: 10 V DC to 30 V DC
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- MTBF: > 100 years
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 865.7 MHz to 867.5 MHz
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Operating temperature range from -40 °C to +50 °C
- Updatable firmware and freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable transmitting power
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10100 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
