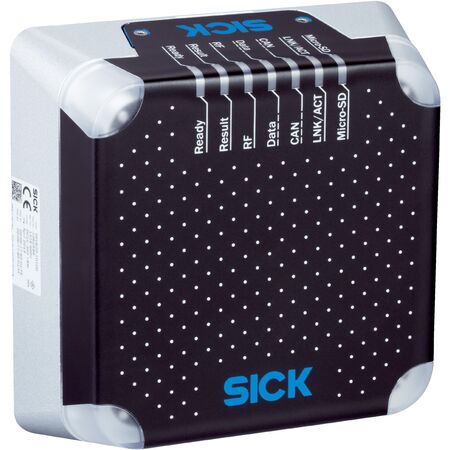

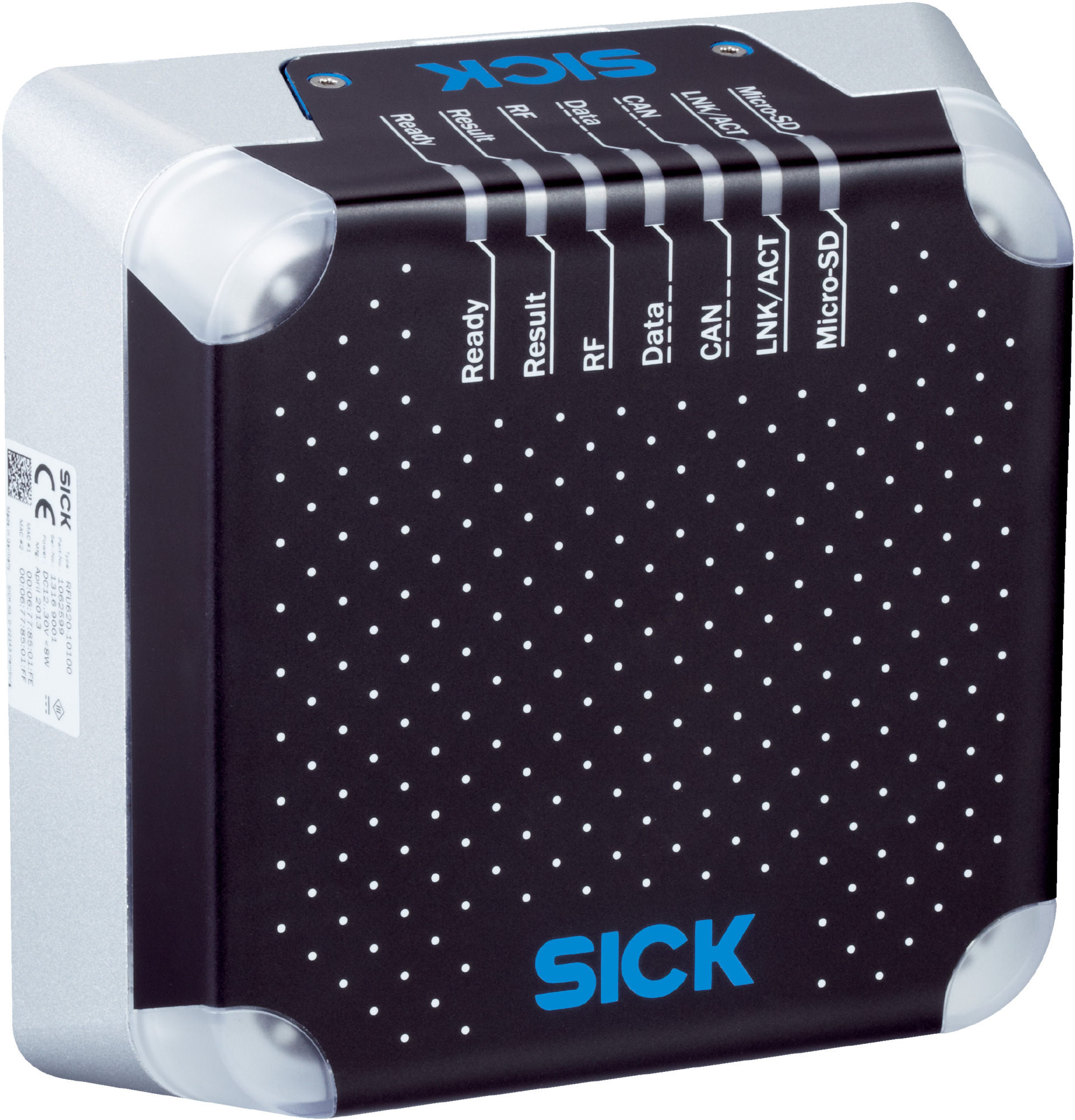

RFID Reader RFU620-10101 | Mid Range | UHF Frequency Band | IP67 Rated | by SICK
The RFU620-10101 RFID Reader is a mid-range read/write device with an integrated antenna, designed for industrial automation and logistics applications. Operating in the UHF frequency band (860 MHz to 960 MHz) with a read range of up to 2 meters, it features robust IP67 rated housing for durability. Ideal for asset tracking and supply chain management, this device supports multiple interfaces including Ethernet and PROFINET, ensuring seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Mid Range
- Product category: RFID read/write device with integrated antenna
- Radio approval: USA (FCC Part 15.247), Canada (RSS-210), México (NOM-121), Ecuador, Costa Rica
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 902.75 MHz to 927.25 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: Ethernet
- Aperture angle: 100°
- Heating: Yes
- Read range: ≤ 2 m
- Antenna: Integrated, adjustable transmitting power, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typ. 8 W, with heating typ. 16 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- MTBF: > 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Digital inputs: 2 physical, 2 additional logical inputs via optional parameter memory
- Digital outputs: 2 physical, 2 additional logical outputs via optional parameter memory
- Optical indicators: 7 multi-color LEDs (device status), 4 RGB LEDs (process feedback)
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 902.75 MHz to 927.25 MHz
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Operating temperature range from -40 °C to +50 °C
- Updatable firmware and freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with RFID systems and compliant with local electrical standards to ensure optimal performance and safety.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable transmitting power
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU620-10101 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
