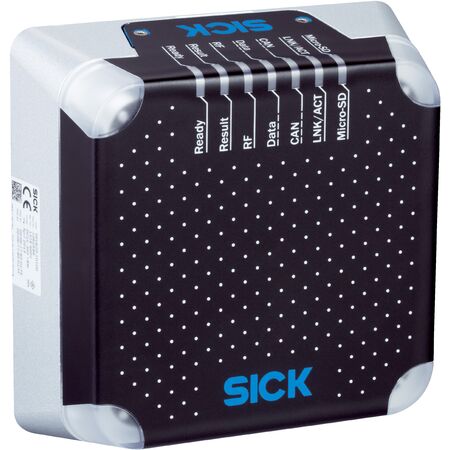

RFID Reader RFU620-10103 | UHF 860-960 MHz | Integrated Antenna | IP67 Rated | by SICK
The RFU620-10103 RFID Reader is a mid-range read/write device designed for industrial automation, logistics, and manufacturing applications. Operating in the UHF frequency band from 860 MHz to 960 MHz, it features an integrated antenna with a 100° aperture angle and adjustable transmitting power. With multiple interface options and an IP67 rated housing, this device ensures robust performance in challenging environments, making it ideal for asset tracking and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 865.7 MHz to 866.9 MHz
- Output power: 0.25 W ERP (24 dBm)
- Modulation: PR-ASK
- Connection type: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Antenna: Integrated, circular polarization, aperture angle 100°, axial ratio typ. 2 dB, front-to-back ratio > 5 dB
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 8 W, with heating typical 16 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- MTBF: > 100 years
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 865.7 MHz to 866.9 MHz
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB
- IP67 rated aluminum die cast and plastic housing for robust industrial use
- Operating temperature range from -40 °C to +50 °C
- Advanced functions including diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10103 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
