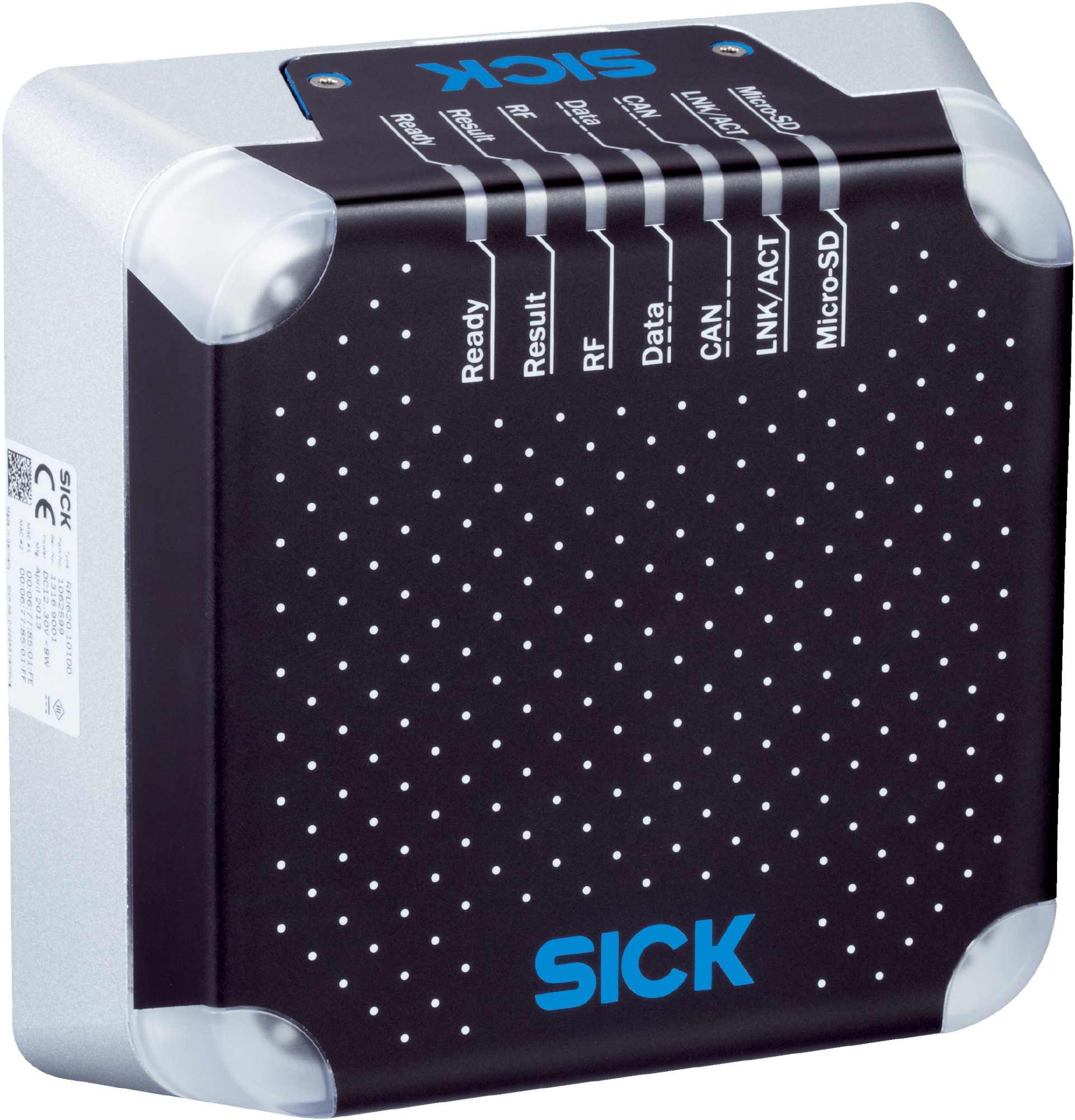

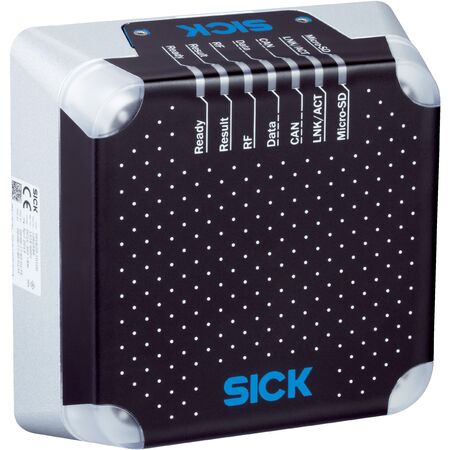

RFID Reader RFU620-10107 | Mid Range | UHF Frequency 860-960 MHz | IP67 Rated | by SICK
The RFU620-10107 RFID Reader is a mid-range read/write device designed for industrial automation and logistics. With a UHF frequency range of 860 MHz to 960 MHz and an integrated antenna, it offers a read range of up to 2 meters. Built for durability with an IP67 rating, this device supports multiple interfaces and is ideal for asset management and inventory control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Mid Range
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 916.8 MHz to 920.4 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Antenna: Integrated, Circular polarization, Axial ratio typ. 3 dB, Front-to-back ratio > 5 dB
- Read range: ≤ 2 m
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typ. 8 W, with heating typ. 16 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- MTBF: > 100 years
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 916.8 MHz to 920.4 MHz
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Operating temperature range from -40 °C to +50 °C
- Supports advanced functions like diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical and safety standards.
Applications
- Industrial automation and logistics for RFID tracking
- Asset management and inventory control
- Access control and identification systems
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable transmitting power
- Durable IP67 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10107 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and asset tracking applications.
