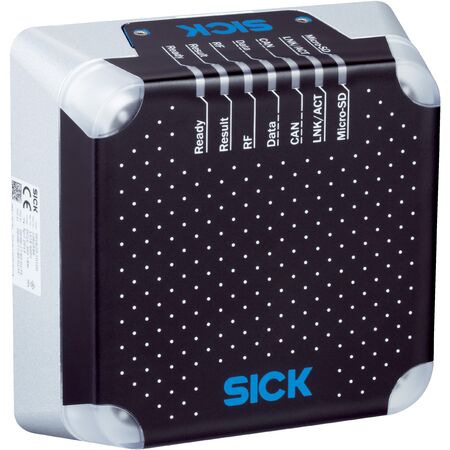

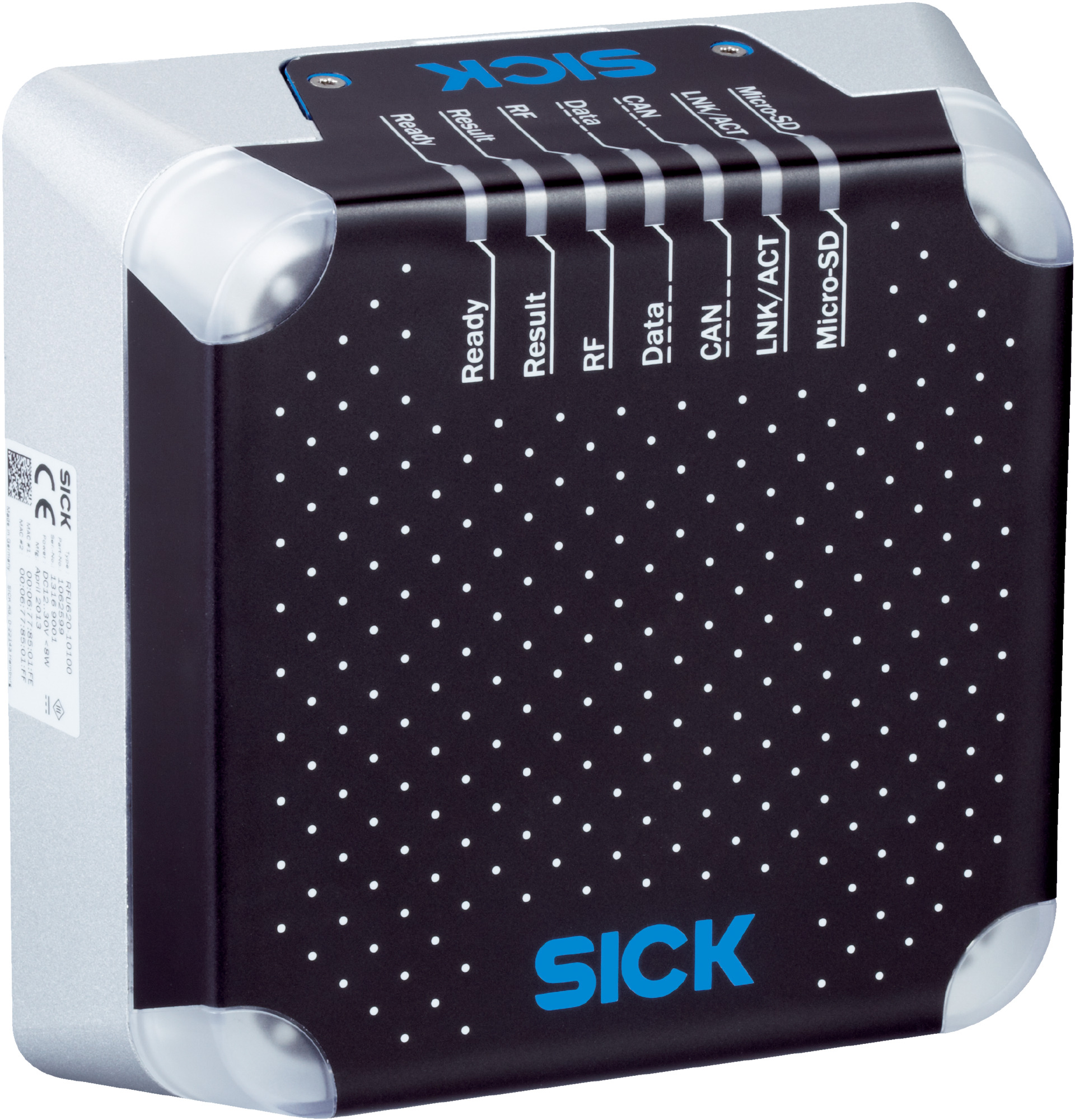

RFID Reader RFU620-10111 | UHF 860-960 MHz | Integrated Antenna | IP67 Rated | by SICK
The RFU620-10111 RFID Reader is a mid-range read/write device designed for industrial automation and logistics applications. Operating in the UHF frequency band from 860 MHz to 960 MHz, it features an integrated antenna and supports multiple interfaces including Ethernet and PROFINET. With an IP67 rated housing, this device ensures robust protection in harsh environments, making it ideal for asset tracking and supply chain management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 920.25 MHz to 927.25 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Power consumption: Typ. 8 W, with heating typ. 16 W
- Supply voltage: 10 V DC to 30 V DC
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- MTBF: > 100 years
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 920.25 MHz to 927.25 MHz
- Adjustable transmitting power with circular polarization
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Operating temperature range from -40 °C to +50 °C
- Supports diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 4268 for Radio Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable transmitting power
- Durable IP67 housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10111 RFID read/write device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID communication.
