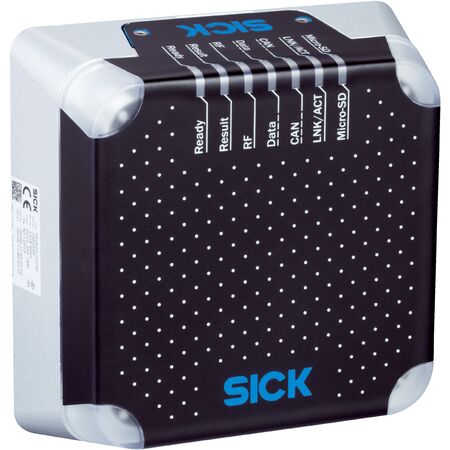

RFID Reader RFU620-10500 | UHF Frequency | IP67 Enclosure | by SICK
The RFU620-10500 RFID reader is a mid-range read/write device designed for industrial automation, logistics, and manufacturing applications. With an integrated antenna and a read range of up to 2 meters, it operates in the UHF frequency band and features an IP67 enclosure for durability. Ideal for asset tracking and supply chain management, this device supports various communication interfaces and offers low power consumption for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: 1 x M12, 8-pin female connector, X-coded; USB 2.0, 5-pin micro-B socket
- Supply voltage: 48 V DC to 57 V DC
- Power consumption: Typical 8 W, standby 3 W
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Data transmission rate: 10/100 MBit/s
- Optical indicators: 7 multi-color LEDs for device status, 4 RGB LEDs for process feedback
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-64:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Permissible relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- Operates in UHF frequency band (860 MHz to 960 MHz)
- Carrier frequency range: 865.7 MHz to 867.5 MHz
- Output power: 0.25 W (ERP, 24 dBm), adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB
- Aperture angle of 100°
- Read range up to 2 meters
- Integrated antenna with front-to-back ratio greater than 5 dB
- PoE connection type with Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Housing made of aluminum die cast and plastic (PPS) with IP67 enclosure rating
- Operating temperature range from -25 °C to +50 °C
- Supports diagnosis, updatable firmware, freely programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing ensures long product life and reduces waste
- Low power consumption (typical 8 W) supports energy efficiency
- Supports updatable firmware to extend device functionality without hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10500 RFID read/write device is available now for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
