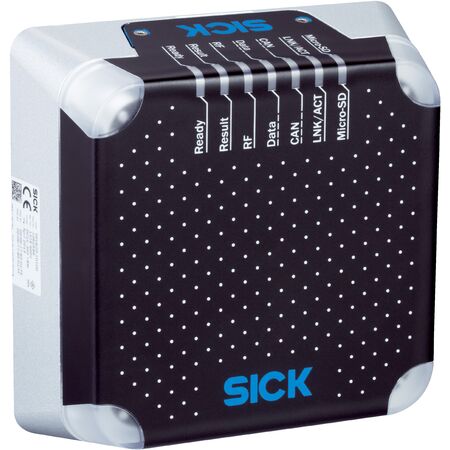

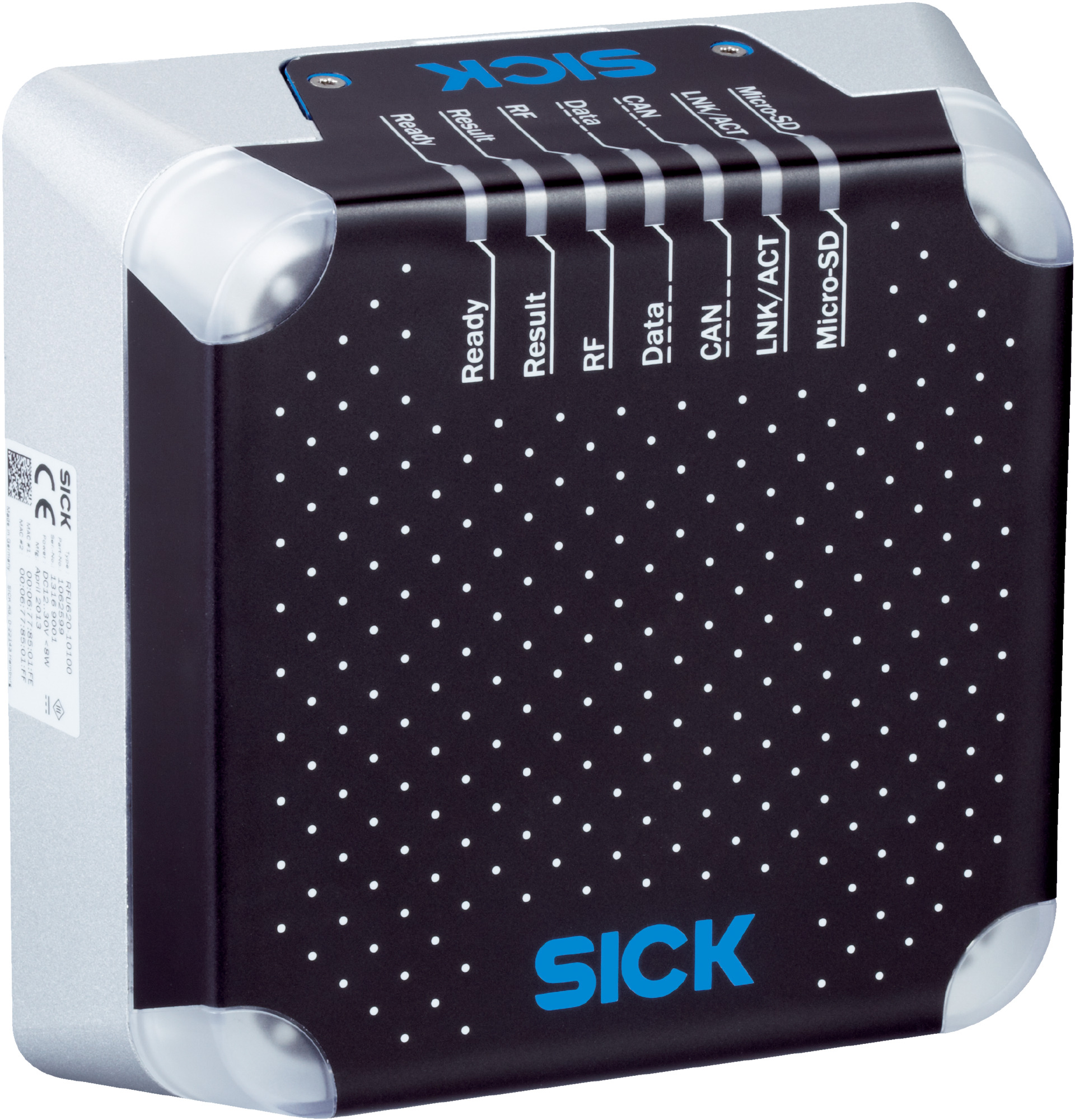

RFID Reader RFU620-10501 | Mid Range Read/Write Device | UHF Frequency Band | IP67 Rated | by SICK
The RFU620-10501 RFID Reader is a mid-range read/write device designed for industrial automation, logistics, and manufacturing applications. With an integrated antenna and UHF frequency band support, it ensures reliable asset tracking and identification. Its durable IP67 rated housing and energy-efficient PoE operation make it ideal for harsh environments, while the adjustable transmitting power and multi-color LEDs enhance usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 902.75 MHz to 927.25 MHz
- Adjustable transmitting power with circular polarization
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- PoE connection type with Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- IP67 rated aluminum die cast and PPS plastic housing
- Operating temperature range from -25 °C to +50 °C
- Updatable firmware and freely programmable data output format
- Equipped with 7 multi-color LEDs and 4 RGB LEDs for device status and process feedback
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Energy-efficient PoE operation minimizes power consumption
- Supports wireless RFID technology reducing the need for physical tags and paper-based tracking
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10501 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
