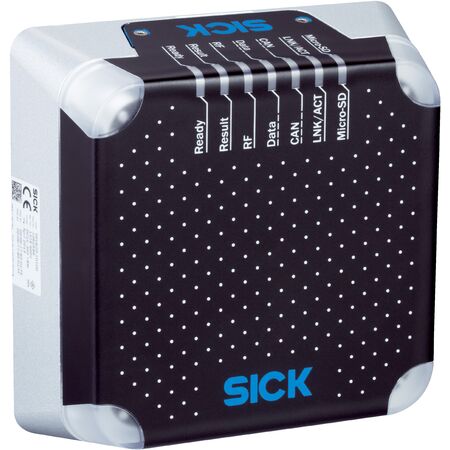

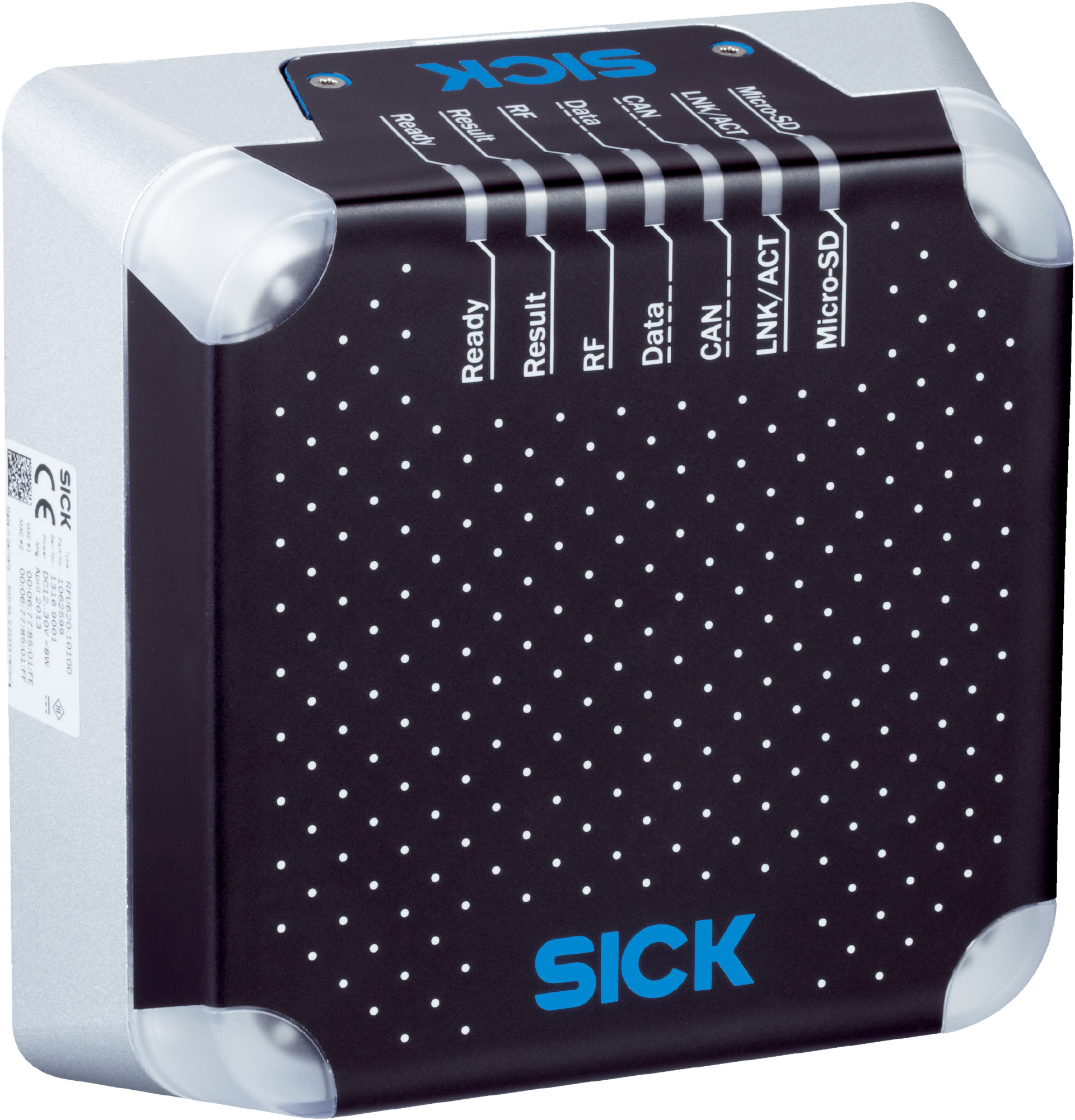

RFID Reader RFU620-10503 | Mid Range | Integrated Antenna | IP67 Rated | by SICK

BRAND: SICK
SKU: 1069453
$4,181.70 List price: $5,255.90
+ −
30 Days Return Delivery Options
The RFU620-10503 RFID reader is a mid-range read/write device with an integrated antenna, designed for industrial automation and asset tracking. Operating in the UHF frequency band (860 MHz to 960 MHz) with a read range of up to 2 meters, it features a robust IP67 rated housing and PoE connectivity for seamless integration into your systems. Ideal for logistics and manufacturing applications, this device ensures reliable performance and durability.
Technical Specifications
  • Version: Mid Range
  • Product category: RFID read/write device with integrated antenna
  • Radio approval: India (ETSI EN 302 208-2 V1.4.1)
  • Frequency band: UHF (860 MHz to 960 MHz)
  • Carrier frequency: 865.7 MHz to 866.9 MHz
  • Output power: 0.25 W (ERP, 24 dBm)
  • RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
  • Modulation: PR-ASK
  • Connection type: PoE
  • Aperture angle: 100°
  • Read range: ≤ 2 m
  • Antenna: Integrated, adjustable transmitting power, circular polarization, axial ratio typ. 2 dB, front-to-back ratio > 5 dB
  • Connection type: 1 x M12, 8-pin female connector, X-coded, USB 2.0 micro-B socket
  • Supply voltage: 48 V DC to 57 V DC
  • Power consumption: Typical 8 W, standby 3 W
  • Housing material: Aluminum die cast and Plastic (PPS)
  • Enclosure rating: IP67
  • Protection class: III
  • Weight: 780 g
  • MTBF: > 100 years
  • Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
  • Data transmission rate: 10/100 MBit/s
  • Digital inputs/outputs: 0
  • Optical indicators: 7 LEDs multi-color, 4 RGB LEDs
  • Operator interfaces: Web server
  • Configuration software: SOPAS ET
  • Programming interface: SICK AppStudio development environment
  • Memory card: microSD for parameter cloning and data storage
  • Ambient operating temperature: –25 °C to +50 °C
  • Storage temperature: –40 °C to +70 °C
  • Permissible relative humidity: 90%, non-condensing
  • Electromagnetic compatibility: EN 301489-3
  • Vibration resistance: EN 60068-2-64:2008-02
  • Shock resistance: EN 60068-2-27:2009-05
  • Dimensions (H x L x W): 56mm x 137mm x 131mm
  • Weight: 0.78 kg
Key Features
  • Mid Range RFID read/write device with integrated antenna
  • UHF frequency band (860 MHz to 960 MHz) with carrier frequency 865.7 MHz to 866.9 MHz
  • Adjustable transmitting power with circular polarization
  • Integrated antenna with 100° aperture angle
  • Read range up to 2 meters
  • PoE connection type for power and data
  • Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
  • Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
  • Multiple interface support including Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, and USB 2.0
  • Advanced functions including diagnosis, updatable firmware, freely programmable data output format, and SICK AppSpace functionalities
  • 7 multi-color LEDs and 4 RGB LEDs for device status and process feedback
  • Web server operator interface and SOPAS ET configuration software
  • MicroSD memory card support for parameter cloning and data storage
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper setup, configuration, and compliance with electrical and radio regulations.
Applications
  • Industrial automation for asset tracking and identification
  • Logistics and warehouse management
  • Manufacturing process control
  • Supply chain management
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Energy-efficient operation with low power consumption (typical 8 W, standby 3 W)
  • Durable IP67 rated housing reduces need for frequent replacements
  • Supports wireless identification reducing the need for physical tags and paperwork
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK RFU620-10503 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
