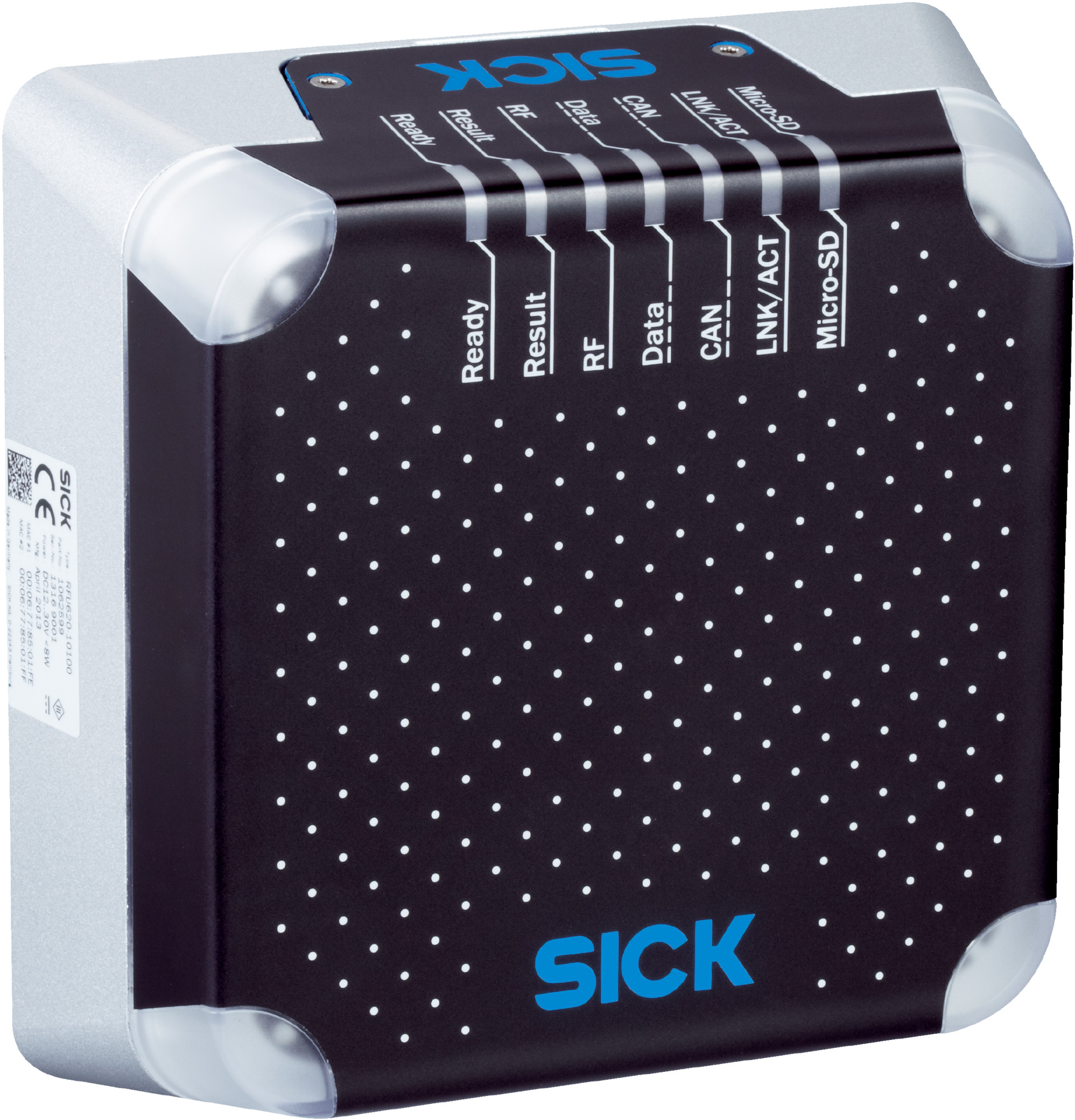

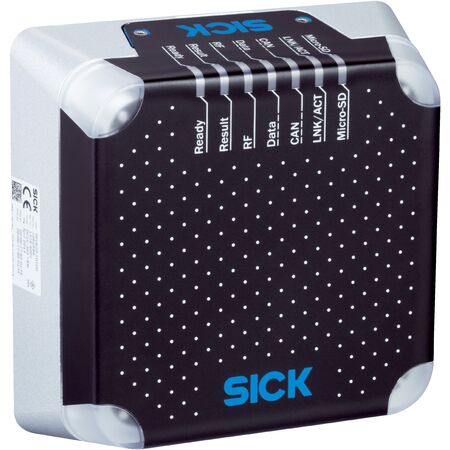

RFID Reader RFU620-10504 | UHF 860-960 MHz | IP67 Rated | by SICK
The RFU620-10504 RFID Reader is a mid-range read/write device designed for industrial automation, logistics, and manufacturing applications. With a UHF frequency band of 860 MHz to 960 MHz and an adjustable output power, it ensures reliable asset tracking and identification. Its robust IP67-rated housing and energy-efficient operation make it ideal for harsh environments, while the integrated antenna provides excellent performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 902.75 MHz to 907.25 MHz and 915.25 MHz to 927.25 MHz
- Output power: 0.32 W (EIRP), adjustable
- Read range: up to 2 meters
- Connection type: PoE, 1 x M12 8-pin female connector, USB 2.0 micro-B socket
- Supply voltage: 48 V DC to 57 V DC
- Power consumption: Typical 8 W, standby 3 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Dimensions: 137 mm x 131 mm x 56 mm
- Weight: 780 g
- Data transmission rate: 10/100 MBit/s
- Operator interface: Web server
- Programming interface: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- EMC compliance: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with 100° aperture angle
- Integrated antenna with axial ratio typically 3 dB and front-to-back ratio > 5 dB
- PoE connection type with Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Operating temperature range from -25 °C to +50 °C
- Updatable firmware and freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with electrical and communication standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 rated housing ensures long product life and reduces waste
- Energy-efficient operation with low power consumption
- Supports wireless RFID technology reducing the need for physical tags and paper-based tracking
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10504 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
