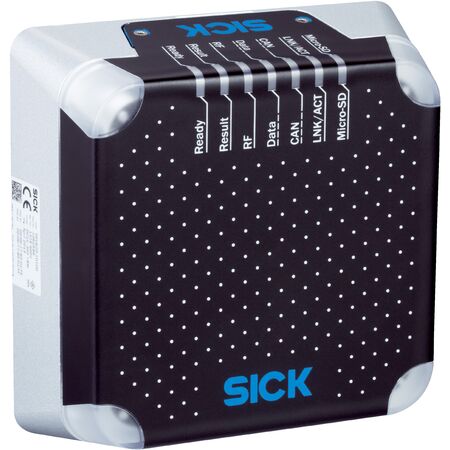

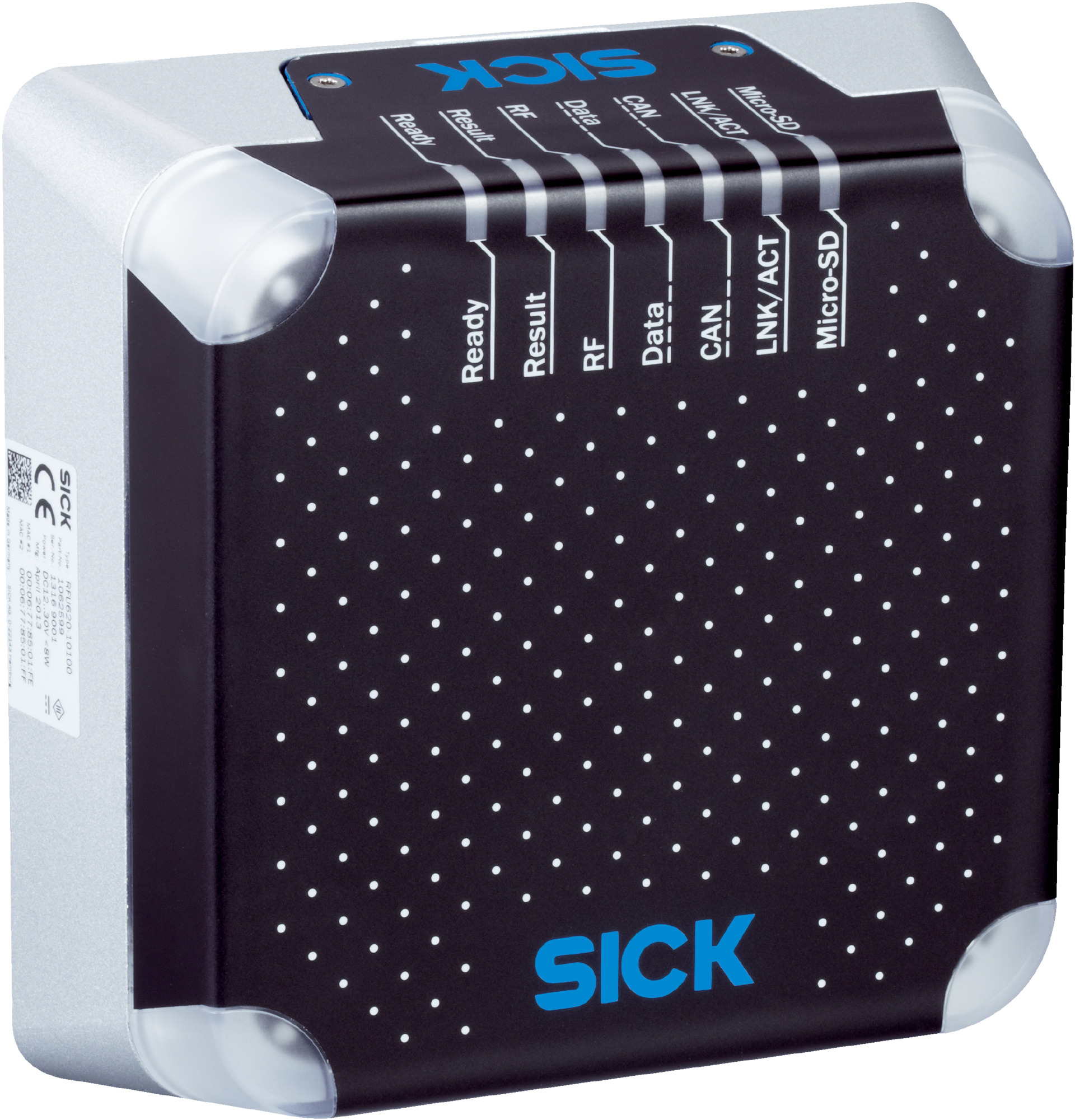

RFID Reader RFU620-10507 | Mid Range | UHF Frequency 860-960 MHz | IP67 Rated | by SICK
The RFU620-10507 RFID Reader is a mid-range read/write device designed for industrial automation and asset tracking. With a UHF frequency band of 860 MHz to 960 MHz and an integrated antenna featuring a 100° aperture angle, it ensures reliable performance in logistics and manufacturing environments. Its robust IP67 rated housing provides durability, making it ideal for harsh conditions while supporting multiple interfaces for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Mid Range
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 916.8 MHz to 920.4 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: PoE
- Aperture angle: 100°
- Read range: ≤ 2 m
- Antenna: Integrated, adjustable transmitting power, circular polarization
- Axial ratio: Typ. 3 dB
- Front-to-back ratio: > 5 dB
- Supply voltage: 48 V DC to 57 V DC
- Power consumption: Typ. 8 W, standby 3 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- MTBF: > 100 years
- Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Data transmission rate: 10/100 MBit/s
- Digital inputs/outputs: 0
- Optical indicators: 7 LEDs multi-color, 4 RGB LEDs
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Ambient operating temperature: –25 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-64:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 916.8 MHz to 920.4 MHz
- Adjustable transmitting power with circular polarization
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- PoE connection type for power and data
- Updatable firmware and freely programmable data output format
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Multiple interface support including Ethernet, PROFINET, EtherNet/IP™, and USB
- 7 multi-color LEDs and 4 RGB LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card support for parameter cloning and data storage
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient PoE power supply
- Durable IP67 housing extends product lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU620-10507 RFID read/write device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
