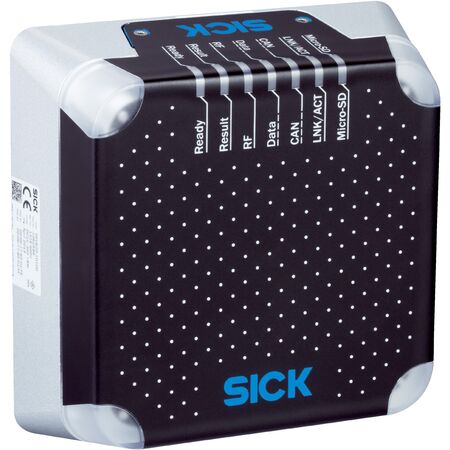

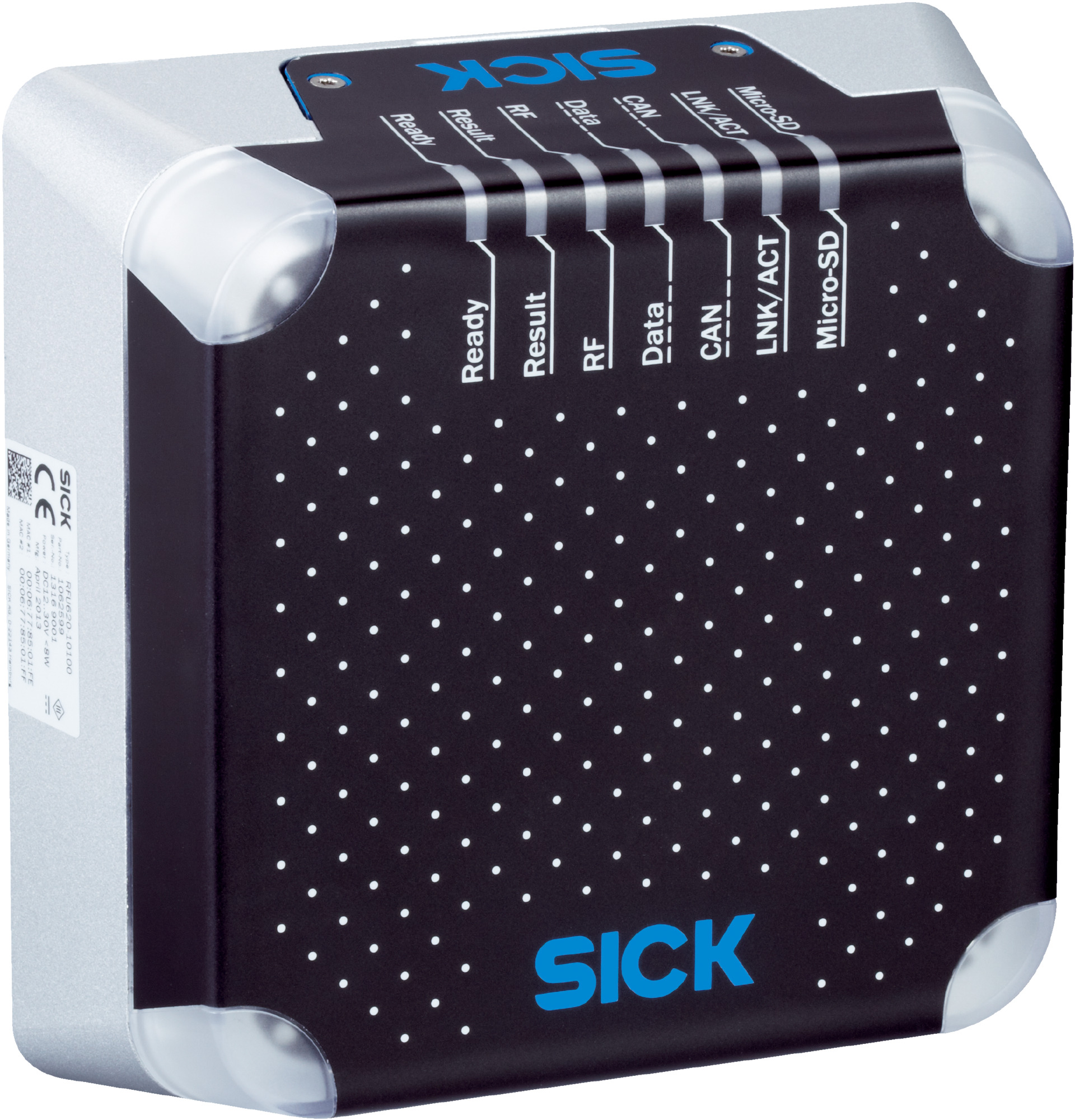

RFID Reader RFU620-10510 | UHF 860-960 MHz | IP67 Rated | Integrated Antenna | by SICK
The RFU620-10510 RFID Reader is a mid-range read/write device designed for industrial automation and logistics applications. Operating in the UHF frequency band from 860 MHz to 960 MHz, it features an integrated antenna with a 100° aperture angle and supports multiple interfaces including Ethernet and USB. With an IP67 rated housing, this robust device ensures reliable performance in harsh environments, making it ideal for asset tracking and supply chain management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 917.3 MHz to 920.3 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- Modulation: PR-ASK
- Read range: up to 2 meters
- Connection type: PoE, 1 x M12 8-pin female connector, USB 2.0 micro-B socket
- Supply voltage: 48 V DC to 57 V DC
- Power consumption: Typical 8 W, standby 3 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Data transmission rate: 10/100 MBit/s
- Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 917.3 MHz to 920.3 MHz
- Adjustable transmitting power with circular polarization
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- PoE connection type for power and data
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Multiple interface support including Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, and USB 2.0
- Updatable firmware and freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
- Operating temperature range from -25 °C to +50 °C
- High MTBF greater than 100 years
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with RFID systems and compliant with local electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient PoE power supply
- Durable IP67 housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU620-10510 RFID read/write device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID identification and tracking.
