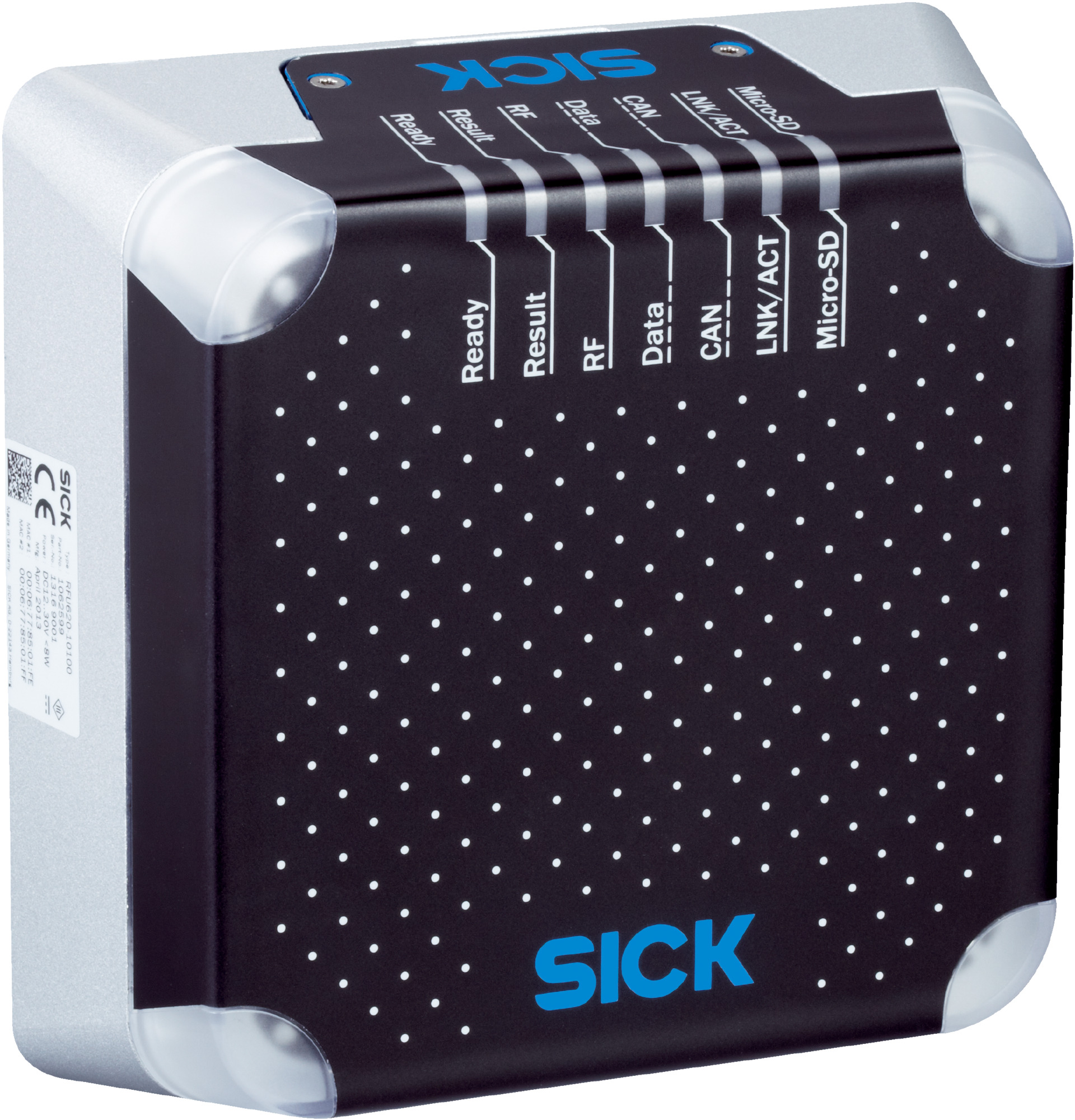

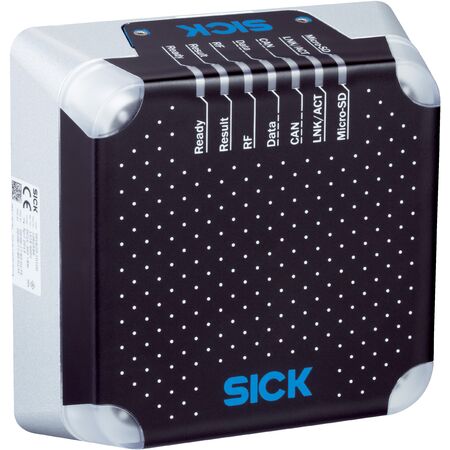

RFID Reader RFU620-10514 | UHF 860-960 MHz | IP67 Rated | Integrated Antenna | by SICK
The RFU620-10514 RFID reader is a mid-range read/write device designed for industrial automation and logistics applications. Operating in the UHF frequency band (860 MHz to 960 MHz) with a read range of up to 2 meters, it features an integrated antenna with a 100° aperture angle. Built with a robust aluminum die cast and PPS plastic housing, this device is IP67 rated, ensuring durability in harsh environments while supporting PoE for seamless power and data connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 919.25 MHz to 922.75 MHz
- Output power: 0.2 W ERP (23 dBm)
- Modulation: PR-ASK
- Connection type: Power over Ethernet (PoE)
- Aperture angle: 100°
- Read range: up to 2 meters
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Supply voltage: 48 V DC to 57 V DC
- Power consumption: Typical 8 W, standby 3 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Data transmission rate: 10/100 MBit/s
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- Operates in UHF frequency band (860 MHz to 960 MHz)
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- PoE connection type for power and data
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Supports Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Multi-color LEDs for device status and process feedback
- Firmware updatable with freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with RFID systems and compliant with local electrical standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports low power consumption with PoE technology
- Durable IP67 rated housing extends product lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU620-10514 RFID read/write device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID communication.
