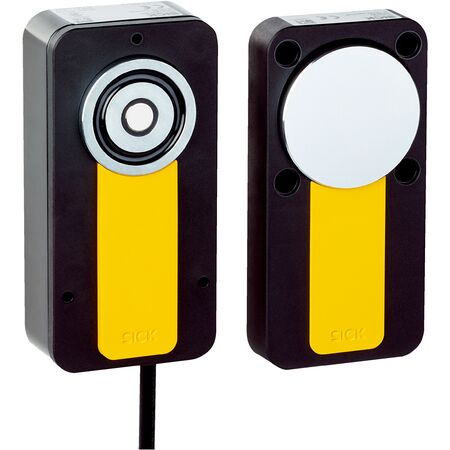

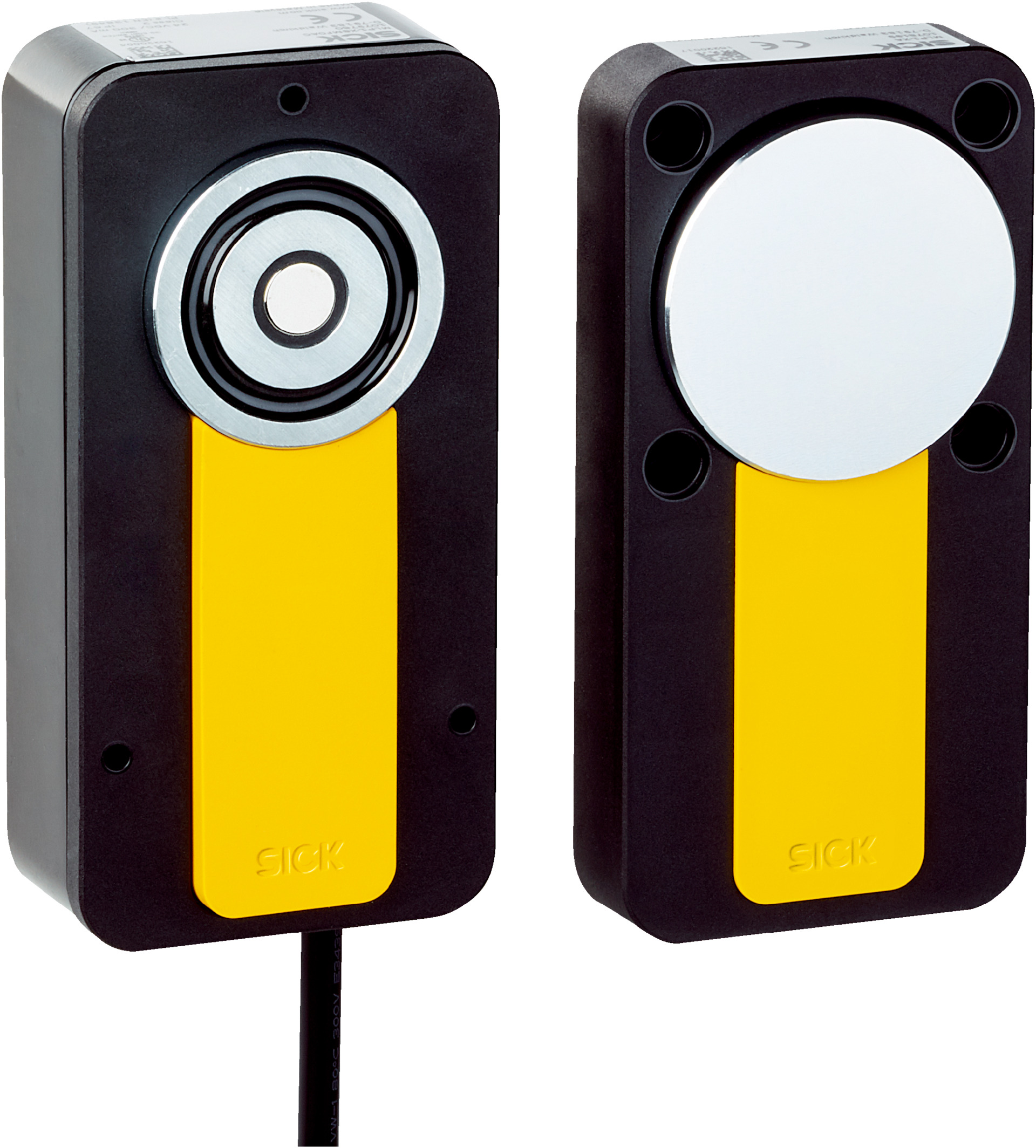

RFID Safety Interlock Switch MLP1-SMUF0AC | 550 N Locking Force | SIL 3 Safety Level | IP67 Rated | by SICK
The RFID Safety Interlock Switch MLP1-SMUF0AC is designed for industrial safety applications, featuring a robust RFID sensor principle and a locking force of up to 550 N. With a high safety integrity level of SIL 3 and an IP67 rated enclosure, this switch is perfect for machine guarding and automation systems that require reliable safety interlocks. Its durable design ensures longevity while minimizing environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 550 N (GS-ET-19)
- Locking force FZh: 500 N (GS-ET-19)
- Retaining force: 25 N
- Offset tolerance: ≤ 5 mm
- Assured switch off distance Sar: 35 mm
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Safe state on fault: At least one OSSD off
- Connection type: Cable with plug M12, 8-pin, 150 mm cable length
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1500 V
- Supply voltage sensor: 24 V DC (22.8 V DC ... 28.8 V DC)
- Supply voltage magnet: 24 V DC (21.6 V DC ... 28.8 V DC)
- Power consumption locking active: 350 mA
- Power consumption locking deactivated: 50 mA
- Switching frequency: ≤ 0.5 Hz
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current (OSSDs): ≤ 100 mA
- Diagnostic output: ≤ 25 mA, short-circuit protected
- Response time: 50 ms
- Release time: 100 ms
- Risk time: 100 ms
- Switch-on time: 2.5 s
- Material sensor housing: Anodized aluminum
- Material actuator housing: Fiber-glass-reinforced PVC
- Material anchor plate: Nickel-plated steel
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 60mm x 38.5mm x 120mm
- Weight: 0.72 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to lock locking principle with locking force up to 550 N
- High safety integrity level SIL 3 and Category 4, Performance Level PL e
- Self-monitoring semiconductor outputs (OSSDs) with actuator monitoring
- IP67 rated enclosure for harsh environments
- LED status display for operational feedback
- Robust mechanical design with anodized aluminum sensor housing and fiber-glass-reinforced PVC actuator housing
- Safe series connection capability with T-connector and Flexi Loop
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety applications requiring RFID-based safety interlock
- Machine guarding and process protection
- Automation systems with high safety integrity requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption in locking and deactivated states
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLP1-SMUF0AC RFID Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
