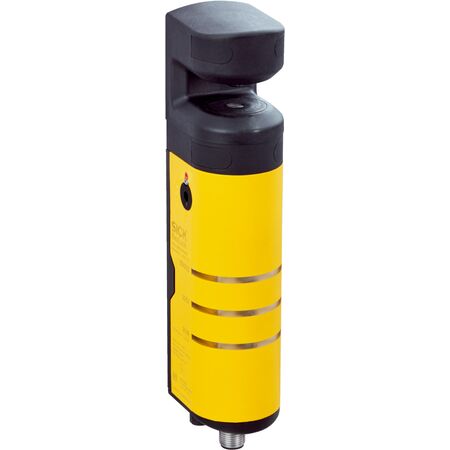

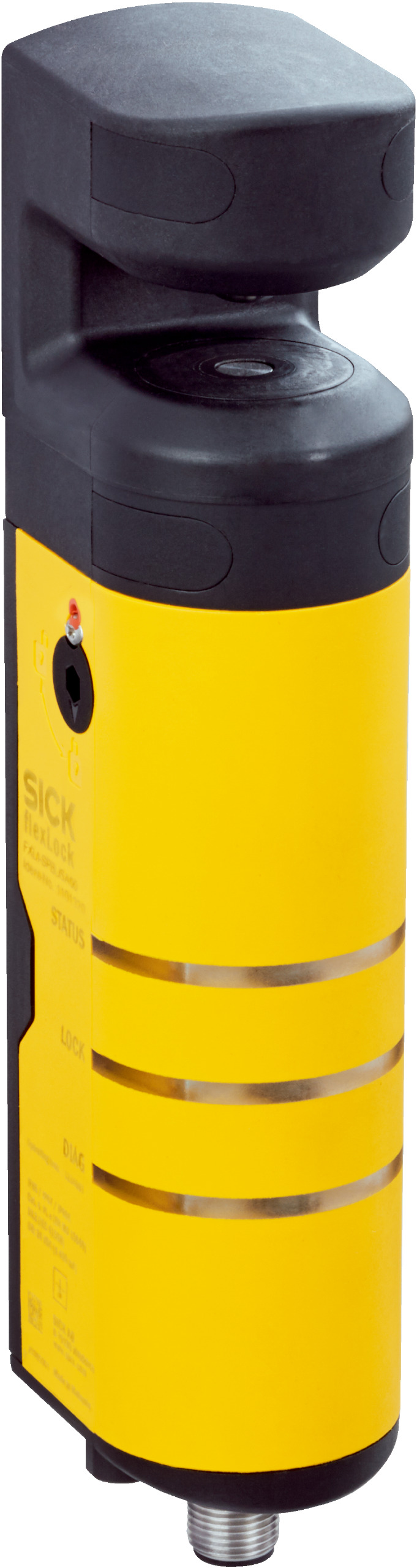

RFID Safety Lock FXL1-SPBMSA00 | High Locking Force 4,100 N | SIL 3 Compliance | IP65/IP67/IP69K Rated | by SICK
The RFID Safety Lock FXL1-SPBMSA00 is designed for industrial safety interlocking, featuring a high locking force of up to 4,100 N and SIL 3 compliance for enhanced safety integrity. With robust stainless steel construction and IP65/IP67/IP69K ratings, it’s perfect for automation systems and harsh environments, ensuring reliable operation and secure access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA (locked and unlocked)
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors, short-circuit protected
- Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.48 kg
Key Features
- RFID sensor principle for secure identification
- Power to release locking principle
- Universally coded actuator
- High locking forces up to 4,100 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Robust stainless steel construction with VISTAL® housing
- IP65, IP67, IP69K rated for harsh environments
- LED status display and diagnostics indicator
- Auxiliary release function included
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper integration into safety control systems.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID sensor technology
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce waste and replacement frequency
- Low power consumption enhances energy efficiency in safety systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FXL1-SPBMSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications.
