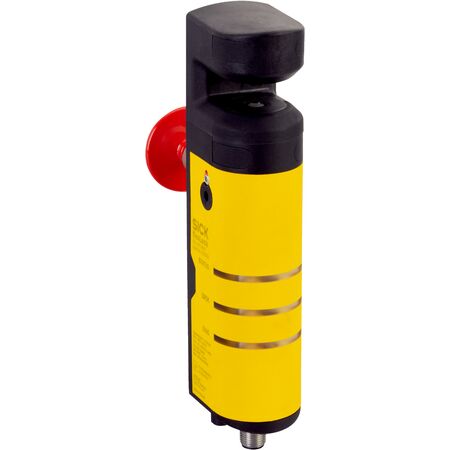

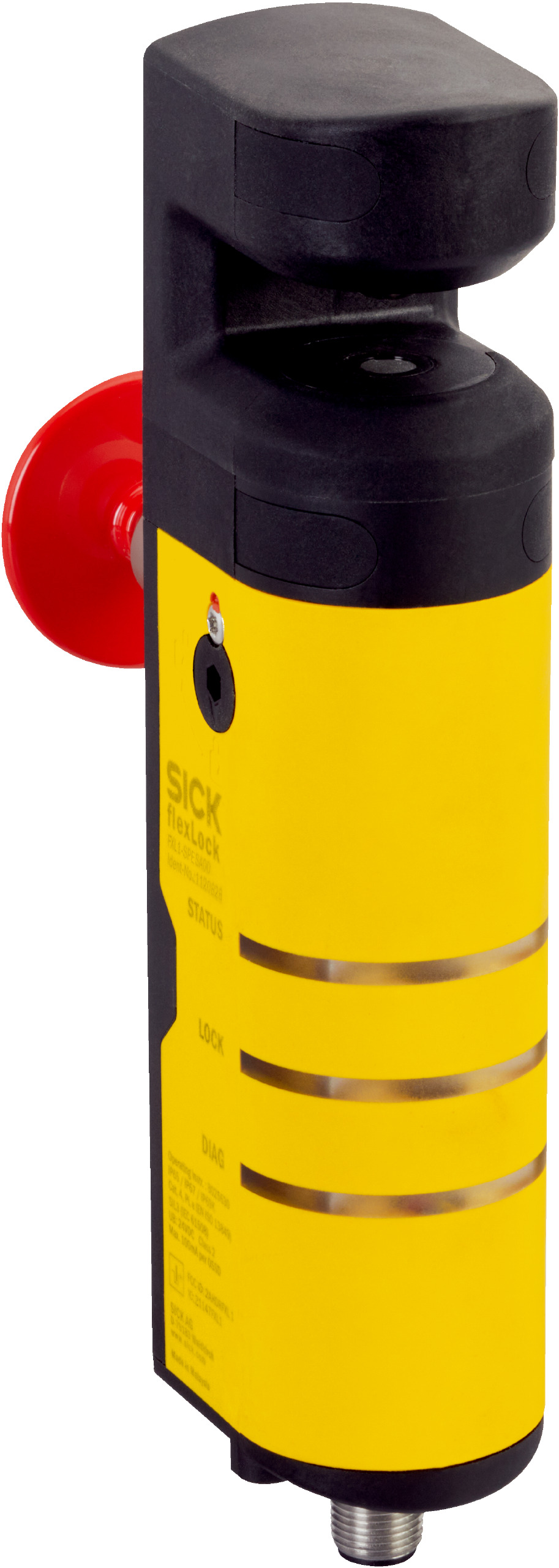

RFID Safety Lock FXL1-SPEMSA00 | High Locking Force 4,100 N | SIL 3 Safety Level | IP65/IP67/IP69K Rated | by SICK
The RFID Safety Lock FXL1-SPEMSA00 is designed for industrial safety interlocking, featuring a high locking force of up to 4,100 N and SIL 3 safety integrity level. Ideal for machinery and access control, this lock ensures reliable operation in harsh environments with its IP65/IP67/IP69K rated enclosure and low power consumption of 65 mA.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator frontal 3,630 N, Rigid actuator lateral 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Power consumption: 65 mA locked and unlocked
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Mechanical life: 1 million switching cycles
- Protection class: III (IEC 61140)
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.48 kg
Key Features
- RFID sensor principle with universal coding
- Power to release locking principle
- High locking forces up to 4,100 N depending on actuator type
- Safety integrity level SIL 3 and Category 4, Performance Level e
- Self-monitoring semiconductor outputs (OSSDs) for safety outputs
- IP65, IP67, IP69K rated enclosure for harsh environments
- LED diagnostics and status display
- Includes two 30 mm extension pieces for escape release axis
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and access control
- Safety monitoring in automated production lines
- Use in hazardous areas requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and VISTAL® housing materials ensure long product life reducing waste
- Low power consumption of 65 mA reduces energy usage
- High reliability reduces need for replacements and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK FXL1-SPEMSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
