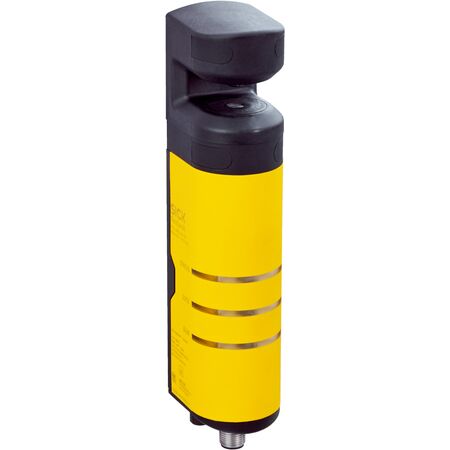

RFID Safety Lock FXL1-SPLUAA00 | Up to 4,100 N Locking Force | SIL 3 Safety Level | IP65/IP67/IP69K Rated | by SICK
The RFID Safety Lock FXL1-SPLUAA00 is designed for industrial safety interlocking, featuring a robust RFID sensor principle and high locking forces up to 4,100 N. With a SIL 3 safety integrity level and IP65/IP67/IP69K ratings, it ensures reliable operation in harsh environments. Ideal for access control in hazardous areas and automation systems, this lock offers a long mechanical life and energy-efficient performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: up to 4,100 N (flexible actuator)
- Actuation force: 20 N
- Retaining force: 30 N
- Actuation frequency: ≤ 1 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA unlocked, 125 mA locked
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Material: VISTAL® housing, stainless steel ball bracket, latch plate, and plug connectors
- Dimensions (H x L x W): 30mm x 120mm x 60mm
- Weight: 0.535 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to lock locking principle
- High locking forces up to 4,100 N depending on actuator type
- Safety integrity level SIL 3 and Category 4, Performance Level e
- Self-monitoring semiconductor outputs (OSSDs) with actuator monitoring
- Robust stainless steel construction with VISTAL® housing
- IP65, IP67, IP69K rated for harsh environments
- LED status display and diagnostics indicator
- High mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce waste and replacement frequency
- Energy-efficient operation with low power consumption in locked and unlocked states
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FXL1-SPLUAA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
