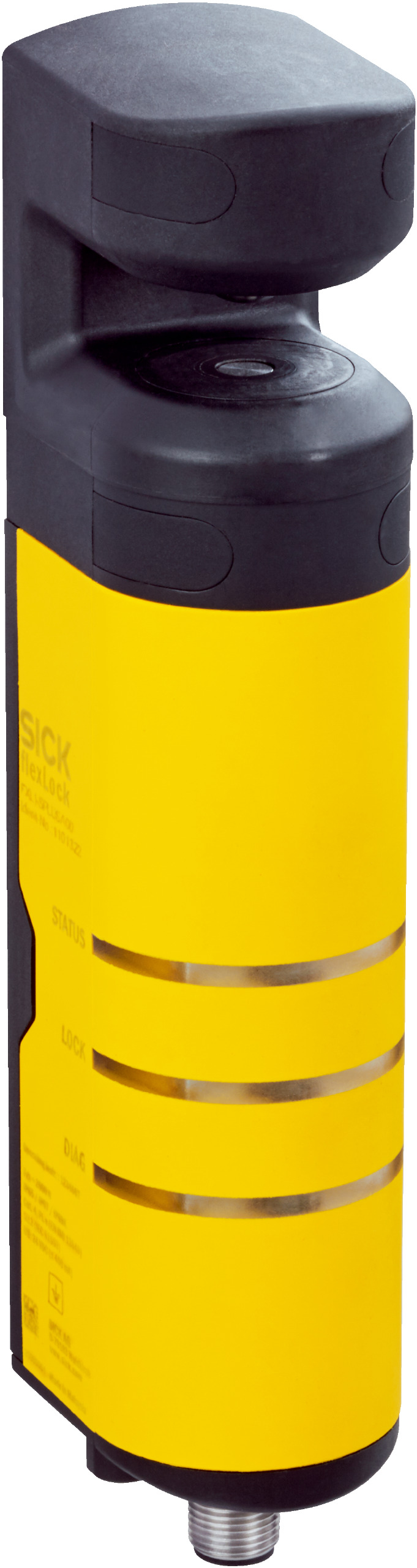

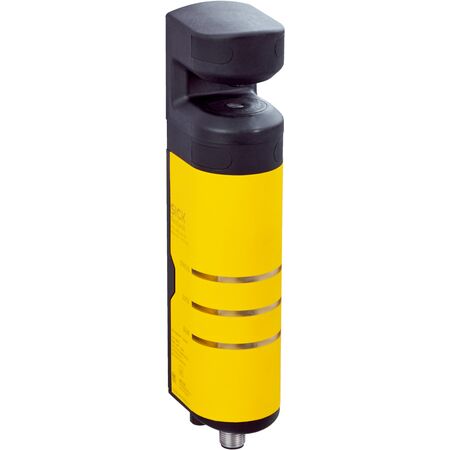

RFID Safety Lock FXL1-SPLUSA00 | Power to Lock | High Locking Force 4,100 N | SIL 3 Compliance | by SICK
The RFID Safety Lock FXL1-SPLUSA00 features a power to lock mechanism and high locking force of up to 4,100 N, making it ideal for industrial safety interlocking and automation systems. Designed for environments requiring robust locking solutions, this lock ensures high safety integrity with SIL 3 compliance and offers a mechanical life of 1 million switching cycles, providing reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Actuation frequency: ≤ 1 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA unlocked, 125 mA locked
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors, short-circuit protected
- Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.535 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to lock locking principle
- High locking forces: up to 4,100 N (flexible actuator)
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- LED status display and diagnostics indicator
- Robust stainless steel and VISTAL® housing materials
- Protection class III and contamination rating 3
- IP65, IP67, IP69K enclosure rating for harsh environments
- Mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID technology
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce waste and replacement frequency
- Low power consumption in locked and unlocked states minimizes energy use
- High safety integrity reduces risk of accidents and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FXL1-SPLUSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications.
