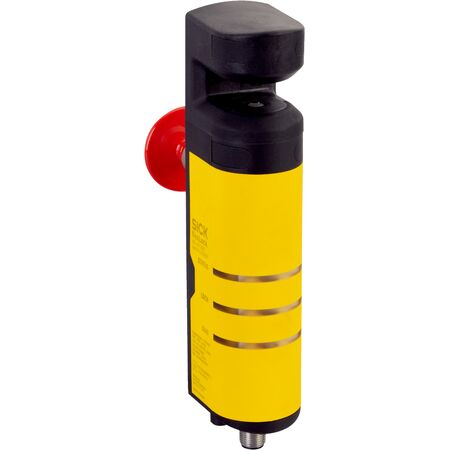

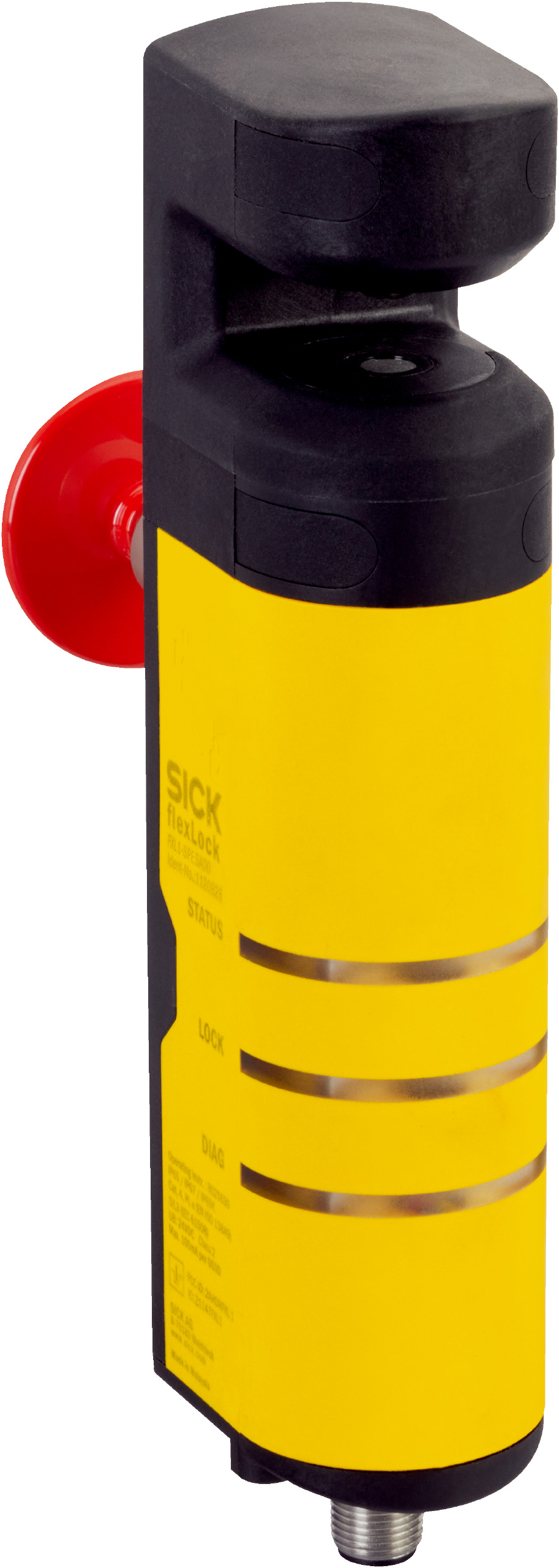

RFID Safety Lock | Power to Lock | High Locking Force 4100 N | IP65/IP67/IP69K Rated | by SICK
The RFID Safety Lock is designed for industrial safety applications, featuring a power to lock mechanism and high locking forces of up to 4,100 N. With a robust stainless steel construction and IP65/IP67/IP69K ratings, it ensures reliable performance in harsh environments. Ideal for access control and safety interlocking in automated production lines, this lock meets SIL 3 safety integrity levels for enhanced security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Approach speed: ≤ 20 m/min
- Actuation frequency: ≤ 1 Hz
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA unlocked, 125 mA locked
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Locking principle: Power to lock
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.535 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to lock locking principle
- High locking forces: up to 4,100 N (flexible actuator)
- Safety integrity level SIL 3 and Category 4 (EN ISO 13849)
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Escape release function included
- Robust stainless steel construction with VISTAL® housing
- IP65, IP67, IP69K rated for harsh environments
- LED status display and diagnostics indicator
- High mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety locking applications
- Access control for machinery and hazardous areas
- Safety interlocking in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient locking device operation
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FXL1-SPUUSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
