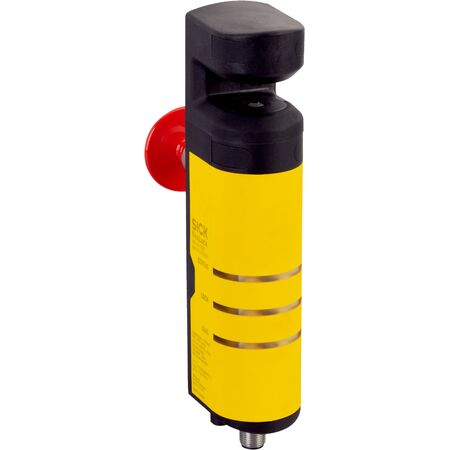

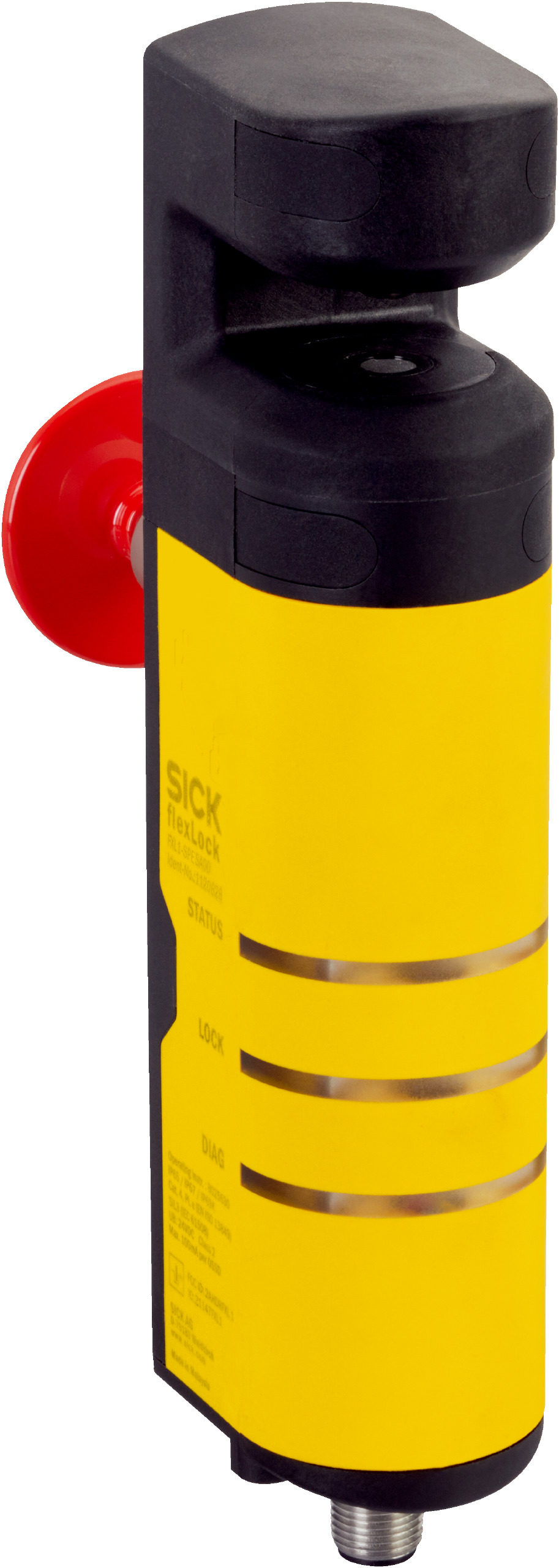

RFID Safety Lock | Power to Lock Mechanism | High Locking Force 4100 N | IP65/IP67/IP69K Rated | by SICK
The RFID Safety Lock with a power to lock mechanism is designed for industrial safety interlocking and access control. With a high locking force of up to 4,100 N and SIL 3 safety integrity level, it ensures reliable operation in hazardous environments. Built with robust stainless steel and VISTAL® housing, this lock features LED diagnostics for easy monitoring, making it ideal for automated production lines and machinery safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Approach speed: ≤ 20 m/min
- Actuation frequency: ≤ 1 Hz
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Plug connector, M12, 8-pin with stainless steel coupling nut
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA unlocked, 125 mA locked
- Peak current: 800 mA for 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors, short-circuit protected
- Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 x 10^6 switching cycles
- Material: Housing VISTAL®, ball bracket stainless steel, latch plate stainless steel, plug connectors stainless steel
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
- Dimensions (H x L x W): 100mm x 150mm x 50mm
- Weight: 0.535 kg
Key Features
- RFID sensor principle with power to lock mechanism
- Universally coded actuator
- High locking forces: up to 4,100 N for flexible actuator
- Safety integrity level SIL 3 and Category 4, Performance Level e
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Escape release function included
- Robust stainless steel construction with VISTAL® housing
- IP65, IP67, IP69K rated for harsh environments
- LED diagnostics and status display for easy monitoring
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety interlocking for machinery and access control
- Safety monitoring in automated production lines
- Use in hazardous areas requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient locking device operation
- Compliant with environmental standards including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FXL1-SPUMSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
