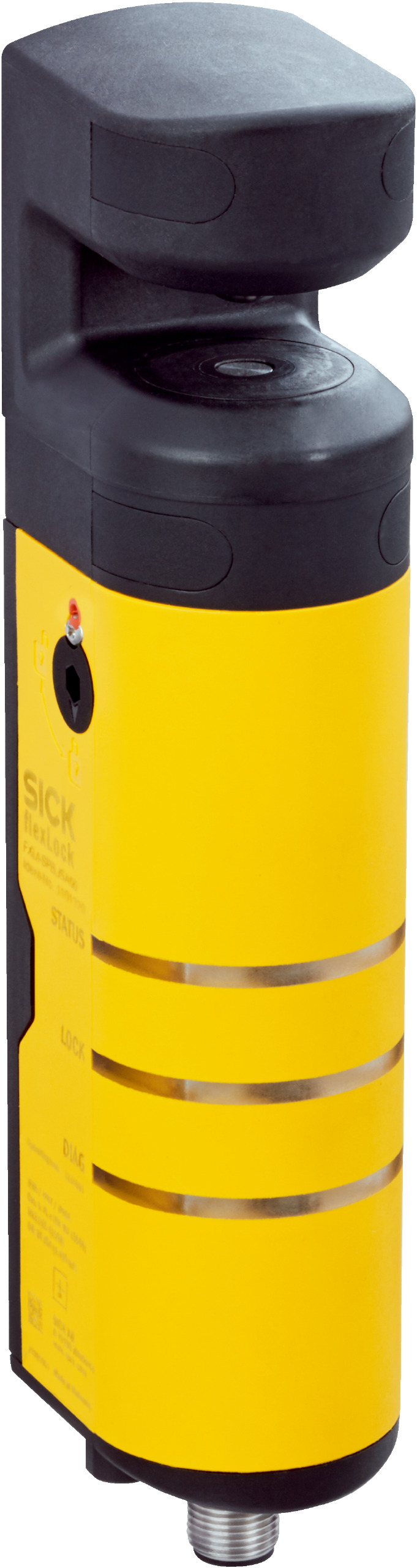

RFID Safety Lock | Power to Release | High Locking Force up to 4100 N | IP65, IP67, IP69K Protection | by SICK
The RFID Safety Lock is designed for industrial safety interlocking, featuring a power to release locking principle and high locking forces up to 4,100 N. With SIL 3 safety integrity and robust stainless steel construction, it’s perfect for access control in hazardous areas and automation systems requiring high safety integrity. The IP65, IP67, and IP69K ratings ensure durability in harsh environments, while LED diagnostics provide easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Actuation frequency: ≤ 1 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA (locked and unlocked)
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors, short-circuit protected
- Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 x 10^6 switching cycles
- Material: Housing VISTAL®, Ball bracket stainless steel, Latch plate stainless steel, Plug connectors stainless steel
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.48 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- High locking forces up to 4,100 N depending on actuator type
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- Robust stainless steel construction with VISTAL® housing
- IP65, IP67, IP69K protection ratings for harsh environments
- LED diagnostics and status display for easy monitoring
- Auxiliary release function included
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption enhances energy efficiency in safety systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

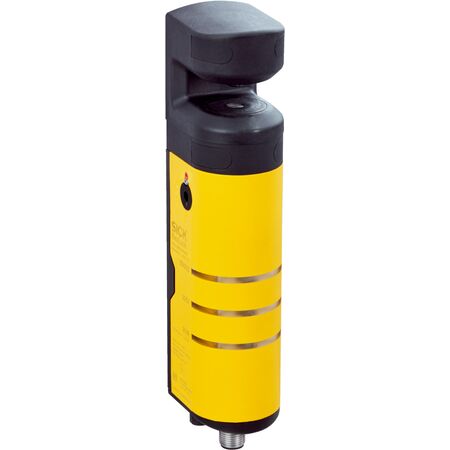

The SICK FXL1-SPBUSA00 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
