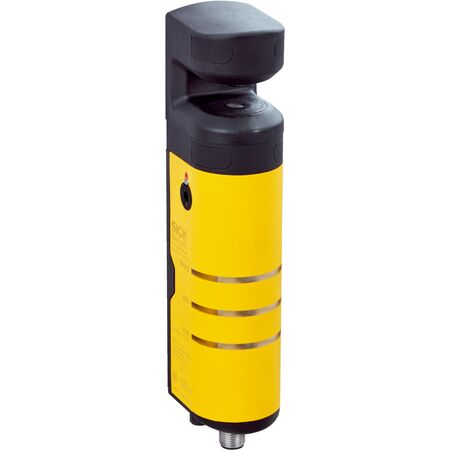

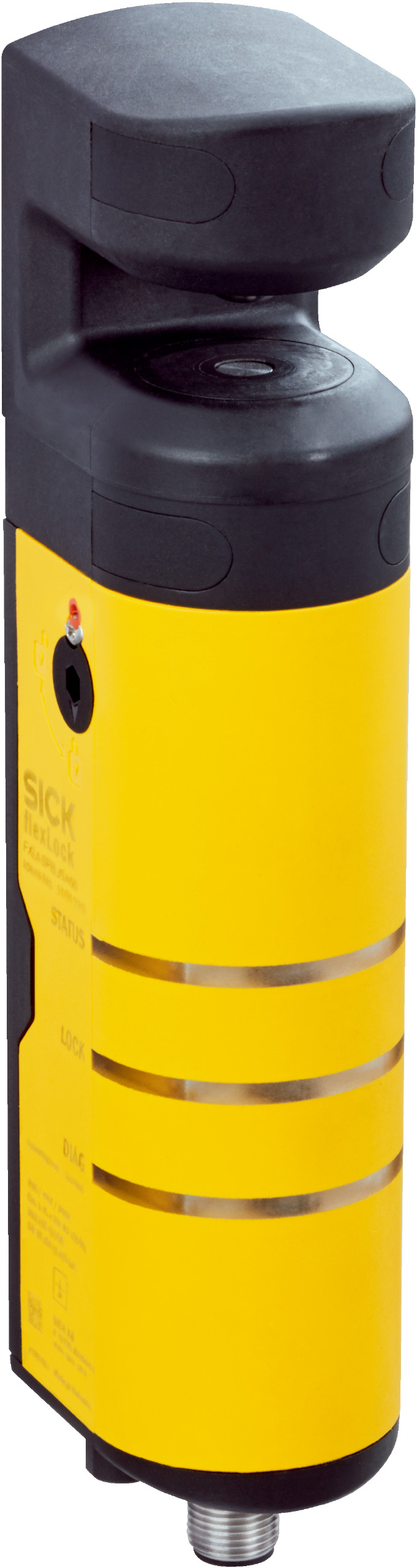

RFID Safety Lock | Power to Release | High Locking Force up to 4100 N | IP65, IP67, IP69K Rated | by SICK

BRAND: SICK
SKU: 1112206
$1,127.40 List price: $1,417.10
+ −
30 Days Return Delivery Options
The RFID Safety Lock is designed for industrial safety interlocking, featuring a power to release locking principle and high locking forces up to 4,100 N. With a robust stainless steel construction and IP65, IP67, IP69K ratings, it’s perfect for access control in hazardous areas and automation systems requiring high safety integrity. This lock ensures reliable operation with self-monitoring outputs and an LED status display.
Technical Specifications
  • Sensor principle: RFID
  • Locking principle: Power to release
  • Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
  • Locking force FZh: Flexible actuator 3,150 N, Rigid actuator (frontal) 2,790 N, Rigid actuator (lateral) 2,700 N
  • Actuation force: 12 N
  • Retaining force: 15 N
  • Force against which unlocking is possible: ≤ 25 N
  • Actuation frequency: ≤ 1 Hz
  • Approach speed: ≤ 20 m/min
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • PFHD: 9.55 x 10^-9
  • Mission time: 20 years
  • Type: Type 4 (EN ISO 14119)
  • Actuator coding level: Low coding level
  • Safe state in fault: At least one safety-related semiconductor output (OSSD) OFF
  • Connection type: Plug connector, M12, 8-pin
  • Coupling nut material: Stainless steel
  • Display elements: LEDs with diagnostics indicator and status display
  • Protection class: III (IEC 61140)
  • Contamination rating: 3 (IEC 60947-1)
  • Rated insulation voltage Ui: 32 V
  • Rated impulse withstand voltage Uimp: 1,500 V
  • Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
  • Power consumption: 65 mA (locked and unlocked)
  • Peak current: 800 mA, 200 ms
  • Type of output: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors, short-circuit protected
  • Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
  • Response time: ≤ 150 ms
  • Release time: ≤ 350 ms
  • Risk time: 150 ms
  • Switch-on time: 3 s
  • Mechanical life: 1 x 10^6 switching cycles
  • Material: Housing VISTAL®, Ball bracket stainless steel, Latch plate stainless steel, Plug connectors stainless steel
  • Enclosure rating: IP65, IP67, IP69K
  • Operating temperature: –20 °C to +55 °C
  • Storage temperature: –25 °C to +70 °C
  • Relative humidity: 10% to 95% at 40 °C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm
  • Shock resistance: 30 g, 11 ms
  • EMC: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
  • Dimensions (H x L x W): 60mm x 120mm x 60mm
  • Weight: 0.48 kg
Key Features
  • RFID sensor principle with universally coded locking
  • Power to release locking principle
  • High locking forces up to 4,100 N depending on actuator type
  • Safety integrity level SIL 3 and Category 4 (EN ISO 13849)
  • Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
  • Robust stainless steel construction with VISTAL® housing
  • IP65, IP67, IP69K rated for harsh environments
  • Auxiliary release function included
  • LED status display and diagnostics indicator
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
  • Industrial safety interlocking for machinery and equipment
  • Access control in hazardous areas
  • Automation systems requiring high safety integrity
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials and robust design reduce replacement frequency and waste
  • Low power consumption enhances energy efficiency
  • Complies with RoHS environmental standards
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK FXL1-SPBMSA00S02S RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
