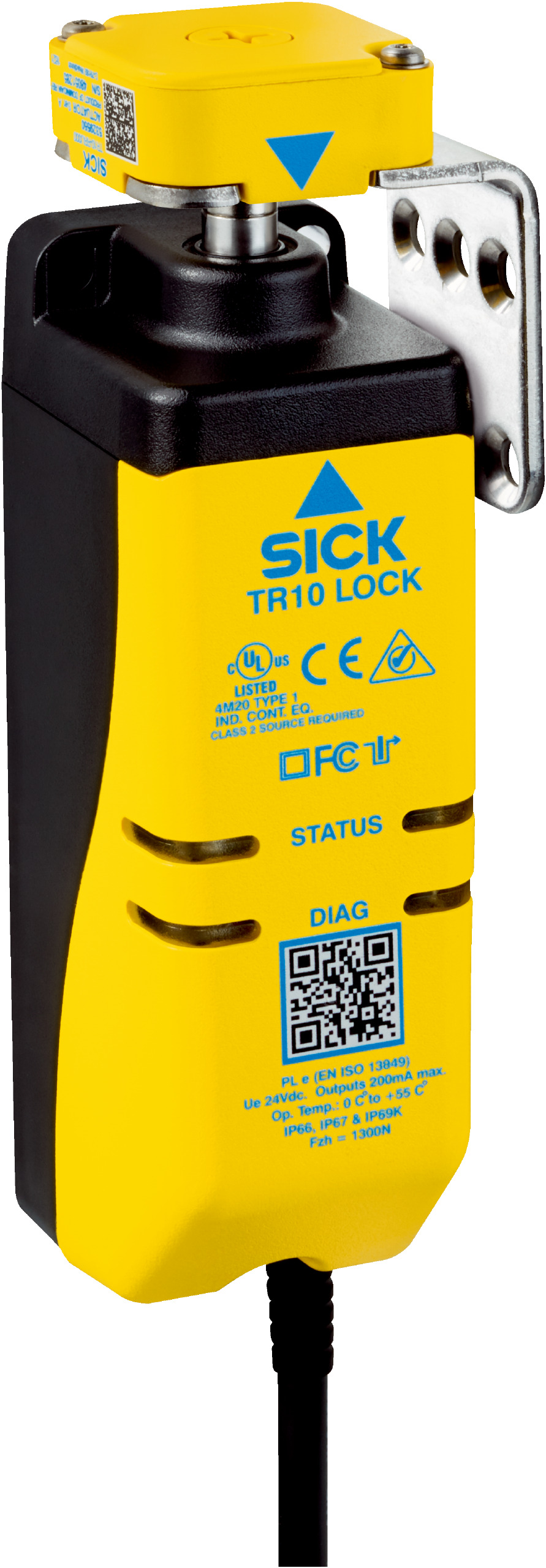

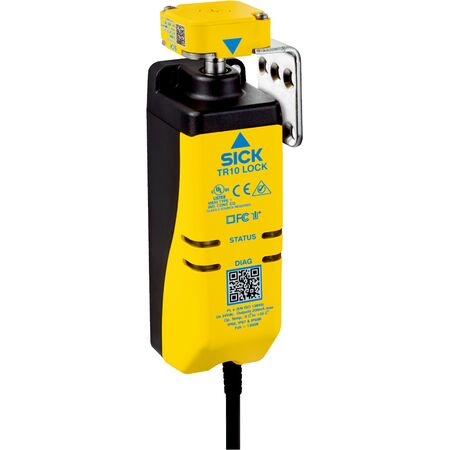

RFID Safety Lock TR10-SLM01C | Power to Lock | SIL 3 Safety Level | IP66, IP67, IP69K Rated | by SICK
The RFID Safety Lock TR10-SLM01C is designed for industrial safety interlocking, featuring a power to lock mechanism with a locking force of up to 1,690 N. Ideal for automation systems requiring high safety integrity, this lock offers two safe outputs and robust IP66, IP67, IP69K protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Locking force FZh: 1,300 N (EN ISO 14119)
- Number of safe outputs: 2
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Cable with plug M12, 8-pin, 0.2 m cable length
- Rated operating current: 200 mA at 24 V DC
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,000 V
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Locking principle: Power to lock
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Mechanical life: 500,000 switching cycles
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle for secure identification
- Power to lock locking principle with locking force up to 1,690 N
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Universally coded actuator with low coding level
- Safety integrity level SIL 3 and Category 4 safety rating
- Locking monitoring with safe series connection options
- LED display elements with diagnostics and status indicators
- Robust housing with IP66, IP67, IP69K protection ratings
- Operating temperature range from 0 °C to +55 °C
- Mechanical life of 500,000 switching cycles
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID technology
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SLM01C RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
