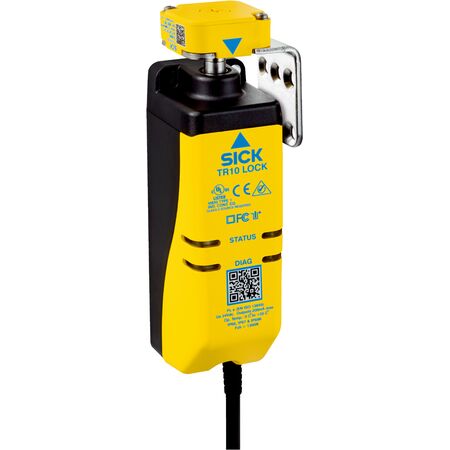

RFID Safety Lock TR10-SLM10P | 1690 N Locking Force | SIL 3 Safety Level | IP66/IP67/IP69K Rated | by SICK
The RFID Safety Lock TR10-SLM10P is designed for industrial safety interlocking, featuring a powerful 1690 N locking force and SIL 3 safety integrity level. Ideal for automation systems and machinery access control, this lock ensures secure identification with its RFID sensor principle and supports four actuation directions. Built to withstand harsh environments, it boasts an IP66/IP67/IP69K rated enclosure, making it a reliable choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Number of safe outputs: 2
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Actuation directions: 4
- Connection type: Cable, 10 m length
- Cable diameter: 6.5 mm, PVC material
- Rated operating current: 200 mA at 24 V DC
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Mechanical life: 500,000 switching cycles
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle for secure identification
- Power to lock locking principle with 1,690 N max locking force
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Universally coded actuator with low coding level
- Four actuation directions supported
- LED display elements with diagnostics and status indicators
- High safety integrity level SIL 3 and Category 4 compliance
- IP66, IP67, IP69K rated enclosure for harsh environments
- Mechanical life of 500,000 switching cycles
- Cable connection with 10 m length and PVC material
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID technology
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
- Robust IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SLM10P RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity and robust locking.
