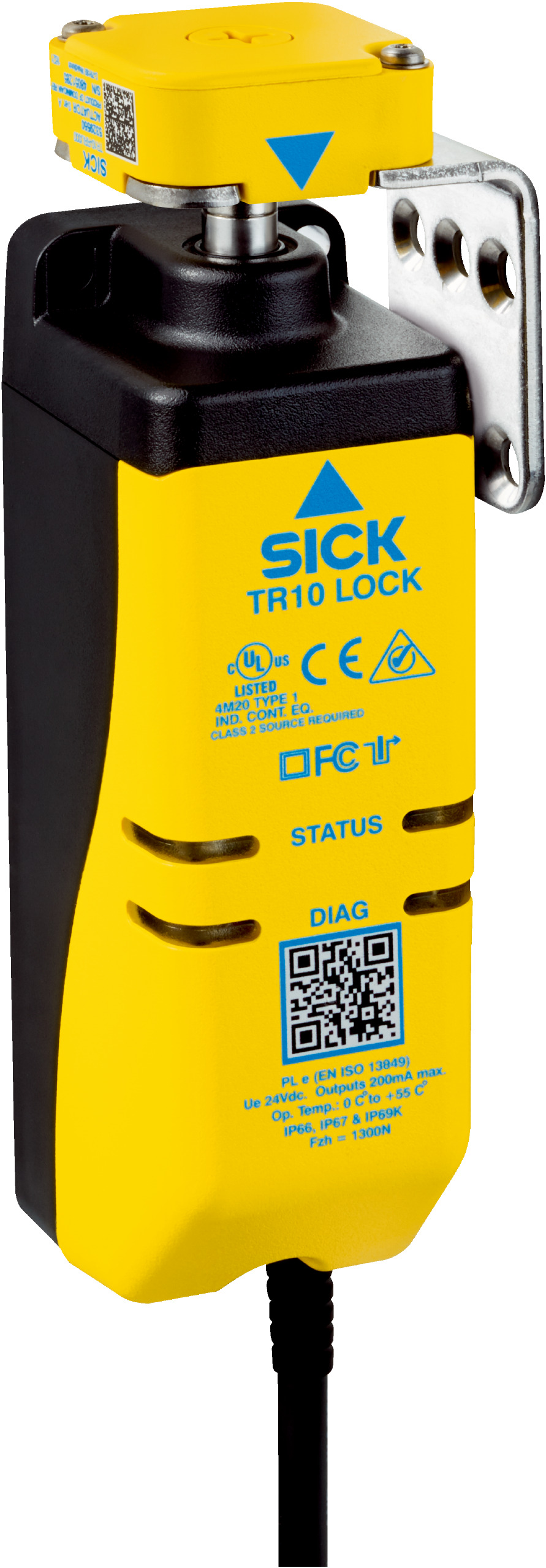

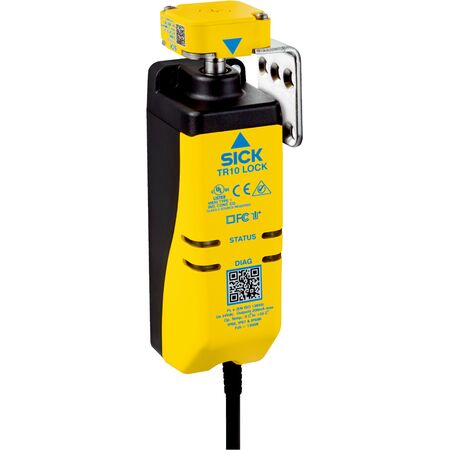

RFID Safety Lock TR10-SLU01C | 1690 N Locking Force | SIL 3 Safety Level | IP66/IP67/IP69K Rated | by SICK
The RFID Safety Lock TR10-SLU01C is designed for industrial safety interlocking, featuring a powerful 1690 N locking force and SIL 3 safety integrity level. Ideal for automation systems, this robust lock ensures high safety standards with its IP66/IP67/IP69K protection ratings, making it perfect for environments requiring reliable access control and safety measures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Number of safe outputs: 2
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m standard, up to 200 m connecting cable
- Protection class: II (IEC 61140)
- Rated operating current: 200 mA at 24 V DC
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Mechanical life: 500,000 switching cycles
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to lock locking principle with locking force up to 1,690 N
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- High safety integrity level SIL 3 and Category 4 safety rating
- LED status display and diagnostics indicator for operational feedback
- Robust housing with IP66, IP67, and IP69K protection ratings
- Cable with M12, 8-pin plug and up to 200 m long connecting cable capability
Professional Installation Requirements
- Installation by qualified personnel trained in safety interlock systems is recommended to ensure compliance with safety standards.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID coding
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SLU01C RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
