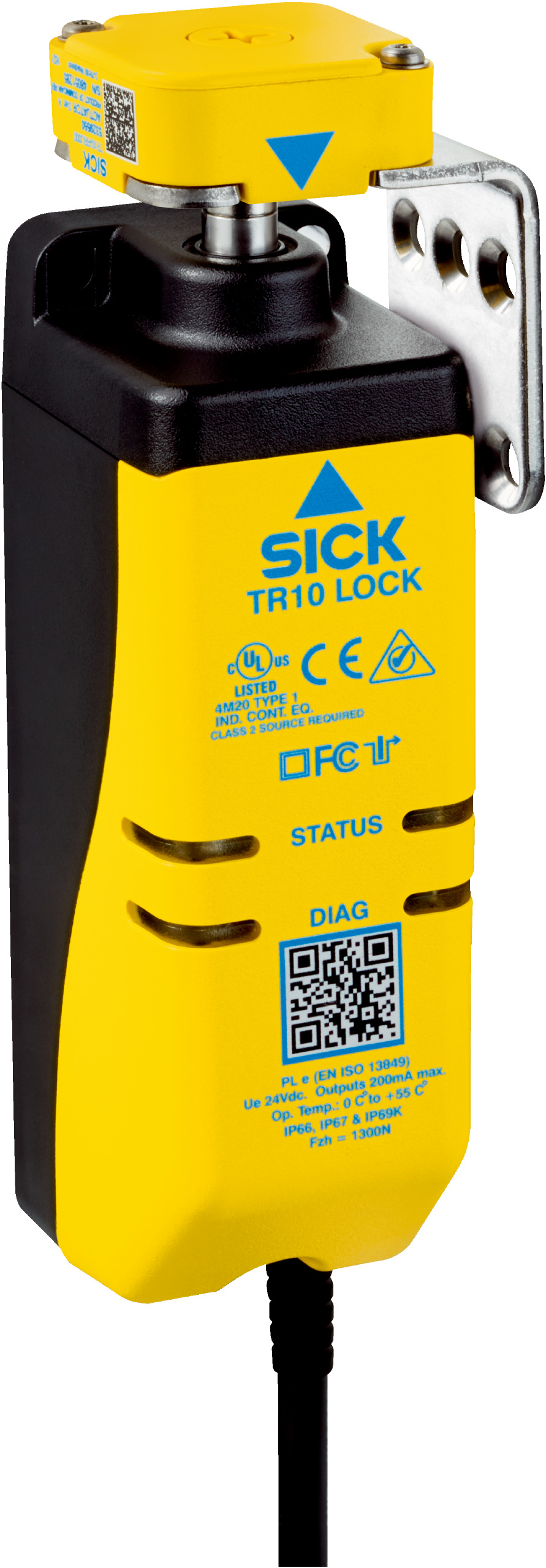

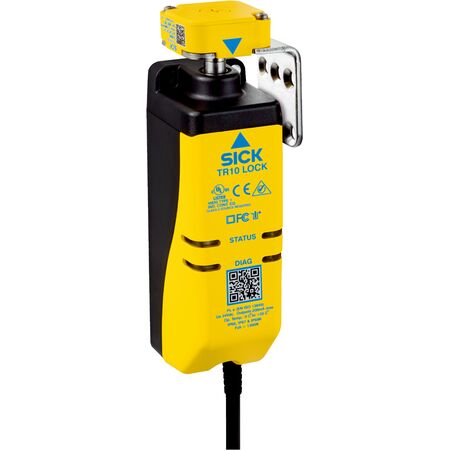

RFID Safety Lock TR10-SLU10P | Power to Lock | SIL 3 Safety Level | IP66, IP67, IP69K Protection | by SICK
The RFID Safety Lock TR10-SLU10P features a power to lock mechanism with a locking force of up to 1,690 N, making it ideal for industrial safety interlocking and access control. Designed for automation systems requiring high safety integrity, this lock offers two safe outputs and a robust housing with IP66, IP67, and IP69K ratings, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Number of safe outputs: 2
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Locking force FZh: 1,300 N (EN ISO 14119)
- Retaining force: 0 N
- Actuation directions: 4
- Approach speed: ≥ 2 mm/s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Safe state in fault: At least one safety-related semiconductor output OFF
- Switching behavior: Locking monitoring
- Safe series connection: In control cabinet with diagnostics
- Connection type: Cable, 10 m length, PVC cable, copper conductor
- Protection class: II (IEC 61140)
- Contamination rating: 3
- Rated operating current: 200 mA (24 V DC)
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,000 V
- Supply voltage VS: 24 V DC (20.4 V DC to 26.4 V DC)
- Output current: ≤ 200 mA
- Peak current: 400 mA for 100 ms
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Risk time: 100 ms
- Switch-on time: 7 s
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Mechanical life: 500,000 switching cycles
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- EMC: IEC 60947-5-3
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to lock locking principle with locking force up to 1,690 N
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- High safety integrity level SIL 3 and Category 4 safety rating
- LED display elements with diagnostics and status indicators
- Robust housing with IP66, IP67, and IP69K protection ratings
- Cable connection with 10 m length and stainless steel coupling nut
Professional Installation Requirements
- Installation by qualified personnel with knowledge of safety interlock systems and compliance with relevant safety standards is required.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID technology
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SLU10P RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
