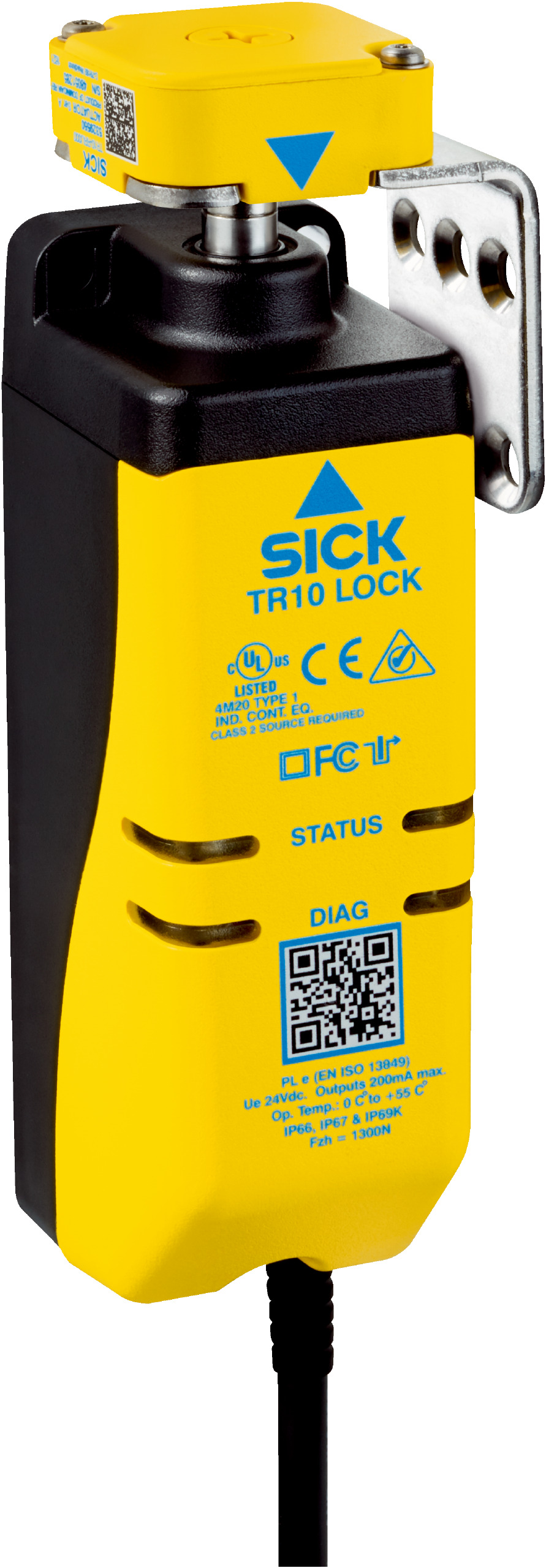

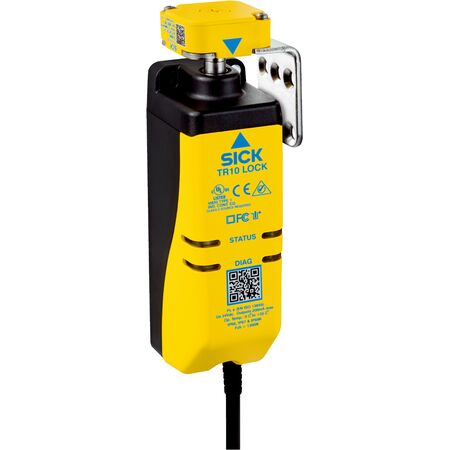

RFID Safety Lock TR10-SRM03P | Power to Release | SIL 3 Safety Level | IP66, IP67, IP69K Protection | by SICK
The RFID Safety Lock TR10-SRM03P features a power to release locking principle and universally coded RFID sensor for enhanced security. With a robust design and IP66, IP67, and IP69K protection ratings, it's perfect for industrial safety interlocking and automation systems. Ideal for environments requiring high safety integrity, this lock ensures reliable operation with two safe outputs and LED diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Number of safe outputs: 2
- Coding: Universally coded
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Locking force FZh: 1,300 N (EN ISO 14119)
- Retaining force: 0 N
- Actuation directions: 4
- Approach speed: ≥ 2 mm/s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: At least one safety-related semiconductor output (OSSD) is OFF
- Switching behavior of OSSDs: Locking monitoring
- Safe series connection: In control cabinet with diagnostics
- Connection type: Cable
- Cable length: 3 m
- Long connecting cable: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 7 x cable diameter
- Bend radius moving cable: > 14 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Stainless steel
- Display elements: LEDs
- Diagnostics indicator: Yes
- Status display: Yes
- Protection class: II (IEC 61140)
- Contamination rating: 3
- Classification cULus: Class 2
- Usage category: DC-13 (IEC 60947-5-1)
- Rated operating current: 200 mA (24 V DC)
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,000 V
- Supply voltage VS: 24 V DC (20.4 V DC to 26.4 V DC)
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 200 mA
- Peak current: 400 mA, 100 ms
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Risk time: 100 ms
- Switch-on time: 7 s
- Weight: 0.4 kg
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Mechanical life: 500,000 switching cycles
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- EMC: IEC 60947-5-3
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle with universally coded locking
- Power to release locking principle with locking force up to 1,690 N
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Safety integrity level SIL 3 and Category 4 safety classification
- LED display elements with diagnostics and status indicators
- Robust housing with IP66, IP67, and IP69K protection ratings
- Cable connection with 3 m length and stainless steel coupling nut
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems to ensure compliance with safety standards and proper operation.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust RFID locking mechanisms
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SRM03P RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications.
