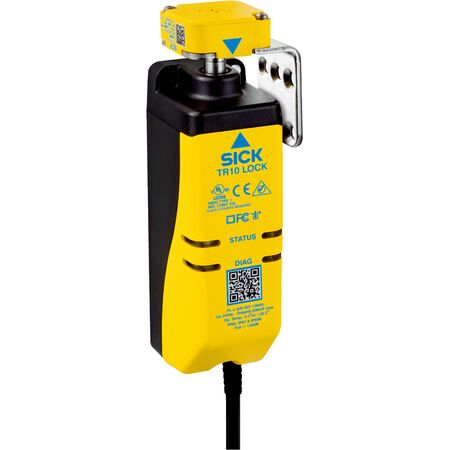

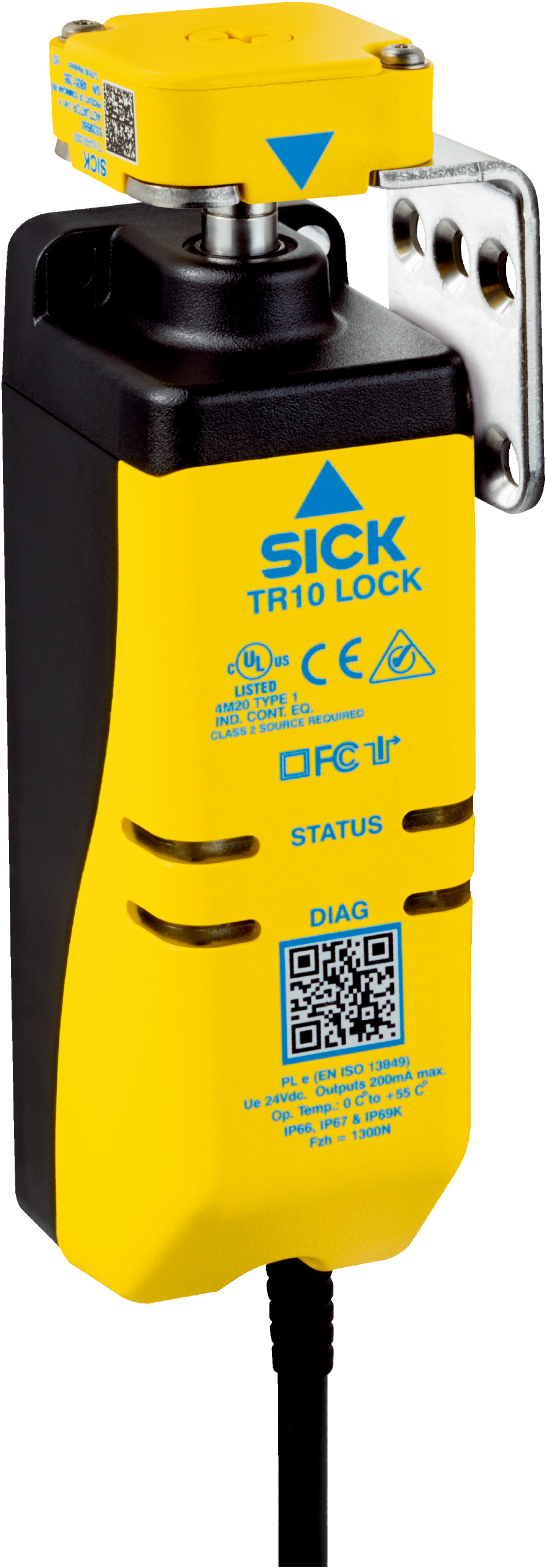

RFID Safety Lock TR10-SRU01C | 1690 N Locking Force | SIL 3 Safety Level | IP66/IP67/IP69K Rated | by SICK
The RFID Safety Lock TR10-SRU01C is designed for industrial safety interlocking, featuring a high locking force of 1,690 N and SIL 3 safety integrity level. Ideal for access control in hazardous areas, this robust lock ensures reliable operation with two safe outputs and a durable IP66/IP67/IP69K rated housing, making it perfect for automation systems requiring high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Number of safe outputs: 2
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Power consumption: 2.5 W
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Output current: ≤ 200 mA
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Protection class: II (IEC 61140)
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Mechanical life: 500,000 switching cycles
- Cable: 0.2 m with M12, 8-pin plug
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Power to release locking principle
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- High locking force up to 1,690 N compliant with EN ISO 14119
- Safety integrity level SIL 3 and Category 4 safety rating
- LED status display with diagnostics indicator
- Robust housing with IP66, IP67, and IP69K protection ratings
- Cable with M12, 8-pin plug connection
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SRU01C RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
