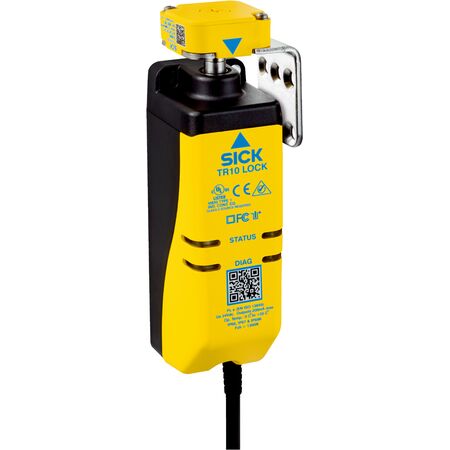

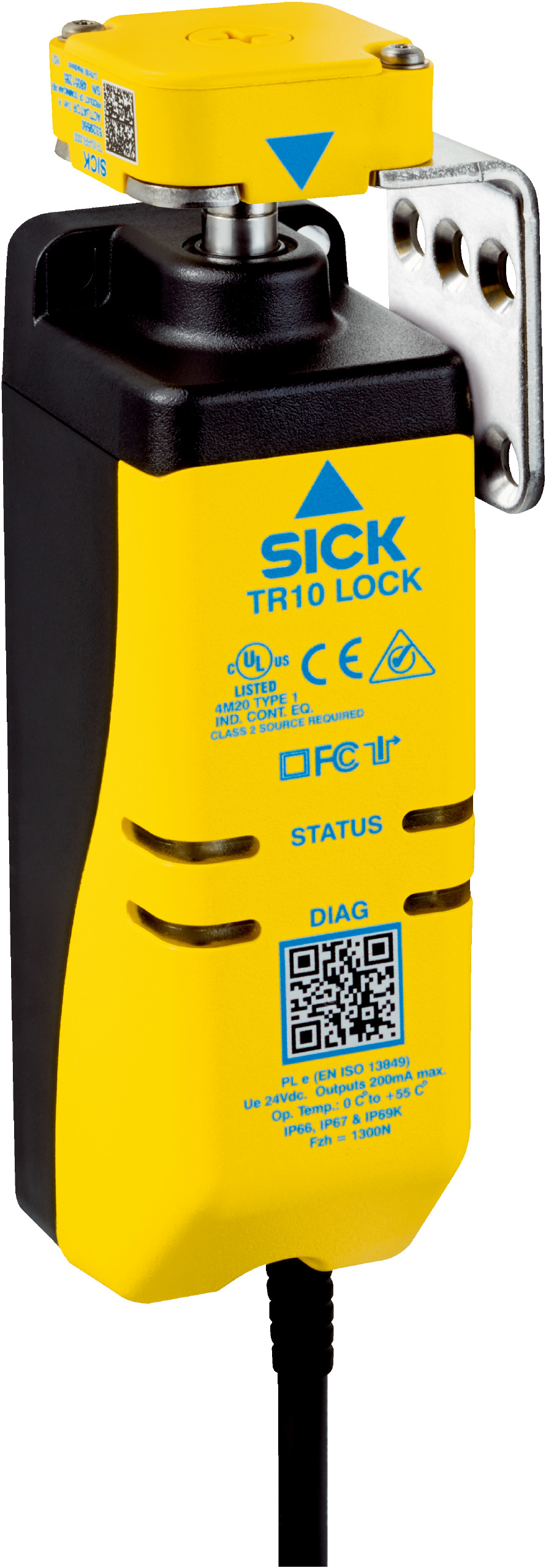

RFID Safety Lock TR10-SRU03P | Power to Release | SIL 3 Safety Level | IP66, IP67, IP69K Protection | by SICK
The RFID Safety Lock TR10-SRU03P features a power to release locking principle and uniquely coded RFID sensor for enhanced security. With two safe outputs and a high locking force of up to 1,690 N, it's perfect for industrial safety interlocking and automation systems. Designed for environments requiring robust locking solutions, this device ensures compliance with safety standards and offers diagnostics through LED indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Number of safe outputs: 2
- Coding: Uniquely coded
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Locking force FZh: 1,300 N (EN ISO 14119)
- Retaining force: 0 N
- Actuation directions: 4
- Approach speed: ≥ 2 mm/s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Safe state in fault: At least one safety-related semiconductor output (OSSD) OFF
- Switching behavior: Locking monitoring
- Safe series connection: In control cabinet with diagnostics
- Connection type: Cable, 3 m length, PVC material
- Rated operating current: 200 mA (24 V DC)
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,000 V
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Output current: ≤ 200 mA
- Peak current: 400 mA for 100 ms
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Risk time: 100 ms
- Switch-on time: 7 s
- Protection class: II (IEC 61140)
- Contamination rating: 3
- Classification cULus: Class 2
- Usage category: DC-13 (IEC 60947-5-1)
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Mechanical life: 500,000 switching cycles
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Vibration resistance: 10 Hz to 55 Hz
- Shock resistance: 30 g, 11 ms
- EMC: IEC 60947-5-3
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to release locking principle
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- High locking force up to 1,690 N compliant with EN ISO 14119
- Safety integrity level SIL 3 and Category 4 safety rating
- LED display elements with diagnostics and status indicators
- Robust housing with IP66, IP67, IP69K protection ratings
- Operating temperature range from 0 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards to ensure compliance and proper function.
Applications
- Industrial safety interlocking for machinery and access control
- Automation systems requiring high safety integrity
- Environments needing robust locking with RFID technology
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SRU03P RFID Safety Lock is available for immediate purchase, ideal for industrial safety and automation applications requiring high integrity locking solutions.
