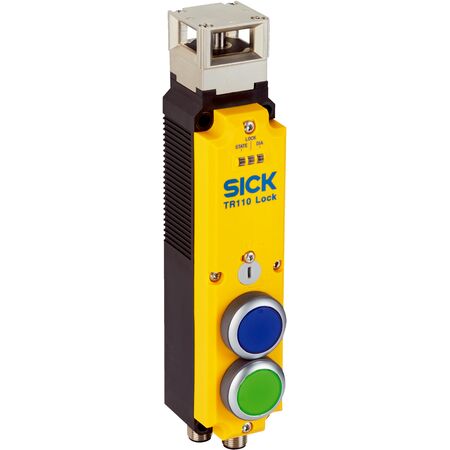

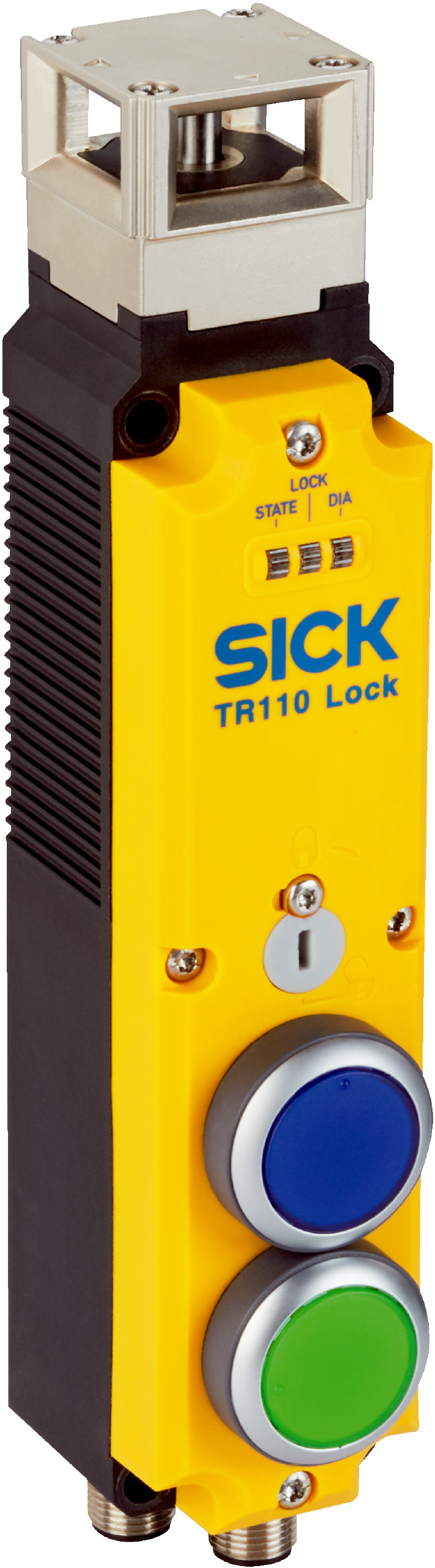

RFID Safety Lock TR110-SLU2BB0 | Up to 3,900 N Locking Force | IP65 Rated | by SICK
The RFID Safety Lock TR110-SLU2BB0 is designed for industrial safety interlocking, featuring a powerful locking force of up to 3,900 N and an IP65 rated enclosure for harsh environments. Ideal for access control in hazardous areas, this lock ensures high safety integrity with SIL 3 compliance, making it perfect for automation systems that require reliable safety measures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force with straight actuator: up to 3,900 N (EN ISO 14119)
- Locking force with angled actuator: up to 1,500 N (EN ISO 14119)
- Locking force with hinged actuator: up to 2,600 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Approach speed: ≤ 20 m/min
- Actuation frequency: ≤ 0.5 Hz
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.38 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin and 5-pin
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Supply voltage: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption magnet: 6 W
- Response time: ≤ 260 ms
- Release time: 150 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +50 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle with uniquely coded locking
- Power to lock mechanism
- High locking forces: up to 3,900 N with straight actuator
- Illuminable pushbuttons for easy operation
- Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
- High safety integrity level SIL 3 and Category 4 compliance
- Robust IP65 rated enclosure for harsh environments
- LED status display and diagnostics indicator
- Plug connectors M12, 8-pin and 5-pin with brass coupling nuts
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SLU2BB0 RFID Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications requiring high reliability and safety compliance.
